DIY Kitchen Cabinets: Build Your Own From Scratch

Building your ownDIY kitchen cabinets may sound like a big challenge, but it becomes much easier when you break the project into simple steps.

Starting with a few sheets of plywood, this project gradually comes together with cabinet boxes, drawers, shelves, shaker-style doors, and a fresh coat of paint.

Along the way, you’ll get a closer look at the tools, materials, and building methods used to create a custom kitchen on a budget.

Curious about how everything fits together and what it really costs to build a DIY cabinet from scratch? Let’s get started.

Are DIY Kitchen Cabinets Worth the Effort?

Before cutting the first piece of plywood, know why DIY kitchen cabinets are worth the time.

Building cabinets yourself can lower renovation costs, give you more control over the design, and help you create storage that better fits your kitchen.

You can plan cabinets around your exact wall size, corners, appliances, and daily needs. You also get to choose helpful features like deep drawers, adjustable shelves, and soft-close hardware.

Another big benefit is the skill you gain. Cabinet building teaches measuring, cutting, joining, and finishing, which can help with future home projects too.

Tools and Materials Needed

Having the right tools and materials ready before you start can make the entire project easier and more organized. The table below highlights the main items used throughout the build and explains what each one is used for.

Category	Items	Use
Cutting Tools	Table Saw, Circular Saw, Circular Saw Guide, Router, Router Bit Set, Speed Square, Measuring Tape	Cutting and measuring
Assembly Tools	Pocket Hole Jig, Drill & Driver, Clamps, Brad Nailer	Building cabinet boxes
Fasteners	Wood Glue, Pocket Hole Screws, Brad Nails	Joining cabinet parts
Helpful Jigs	Shelf Pin Jig, Cutting Guide System, Fence Clamps	Improving accuracy
Wood Materials	3/4-Inch Plywood, 1/4-Inch Plywood, Maple Boards	Cabinet construction
Hardware	Hinges, Soft-Close Drawer Slides, Drawer Pulls, Handles	Cabinet operation
Finishing Supplies	Wood Filler, Sandpaper, Primer	Surface preparation
Paint Supplies	Cabinet Paint, Paint Sprayer, Touch-Up Brushes	Final finish

Step-by-Step Process for Building DIY Kitchen Cabinets

Now it’s time to get into the actual build. The process starts with cutting plywood and progresses through cabinet assembly, drawer construction, door installation, painting, and installation.

Follow these steps in order to see how the cabinets come together from a pile of materials into a finished kitchen.

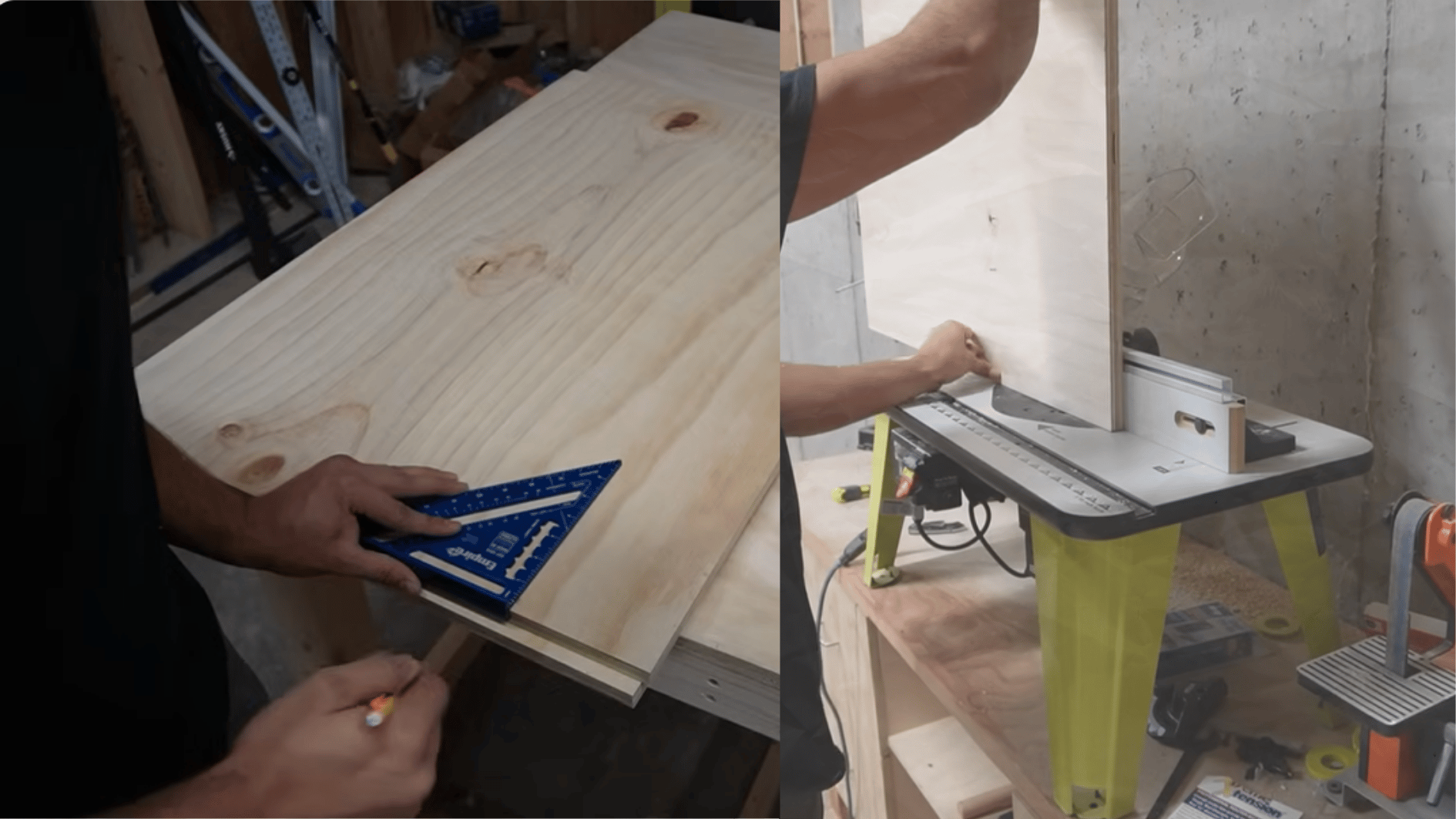

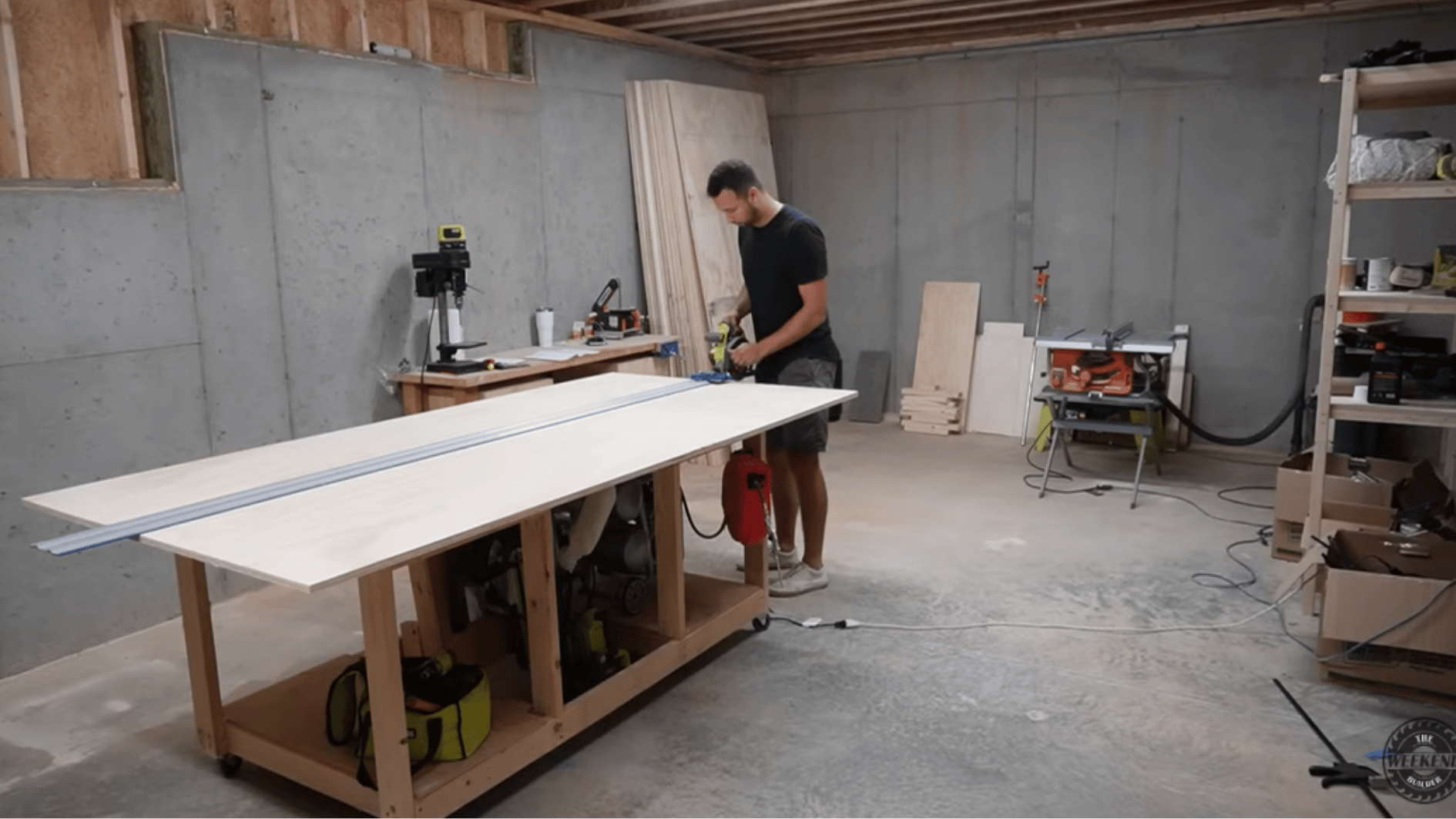

Step 1: Cut All Cabinet Parts to Size

Start by cutting all the plywood pieces needed for the project. This includes the cabinet sides, bottom panels, support pieces, shelves, and back panels.

Taking your time during this stage will make assembly much easier later.

What You’ll Do:

• Break down large plywood sheets into manageable pieces
• Cut cabinet side panels and bottom panels
• Prepare support stretchers
• Cut shelves and back panels to size

Step 2: Create the Toe Kicks and Back Panel Grooves

Before assembly, prepare the cabinet pieces by cutting the toe kicks and creating grooves for the back panels.

What You’ll Do:

• Mark and cut toe kick openings
• Route grooves for the floating back panels
• Check all pieces for proper fit

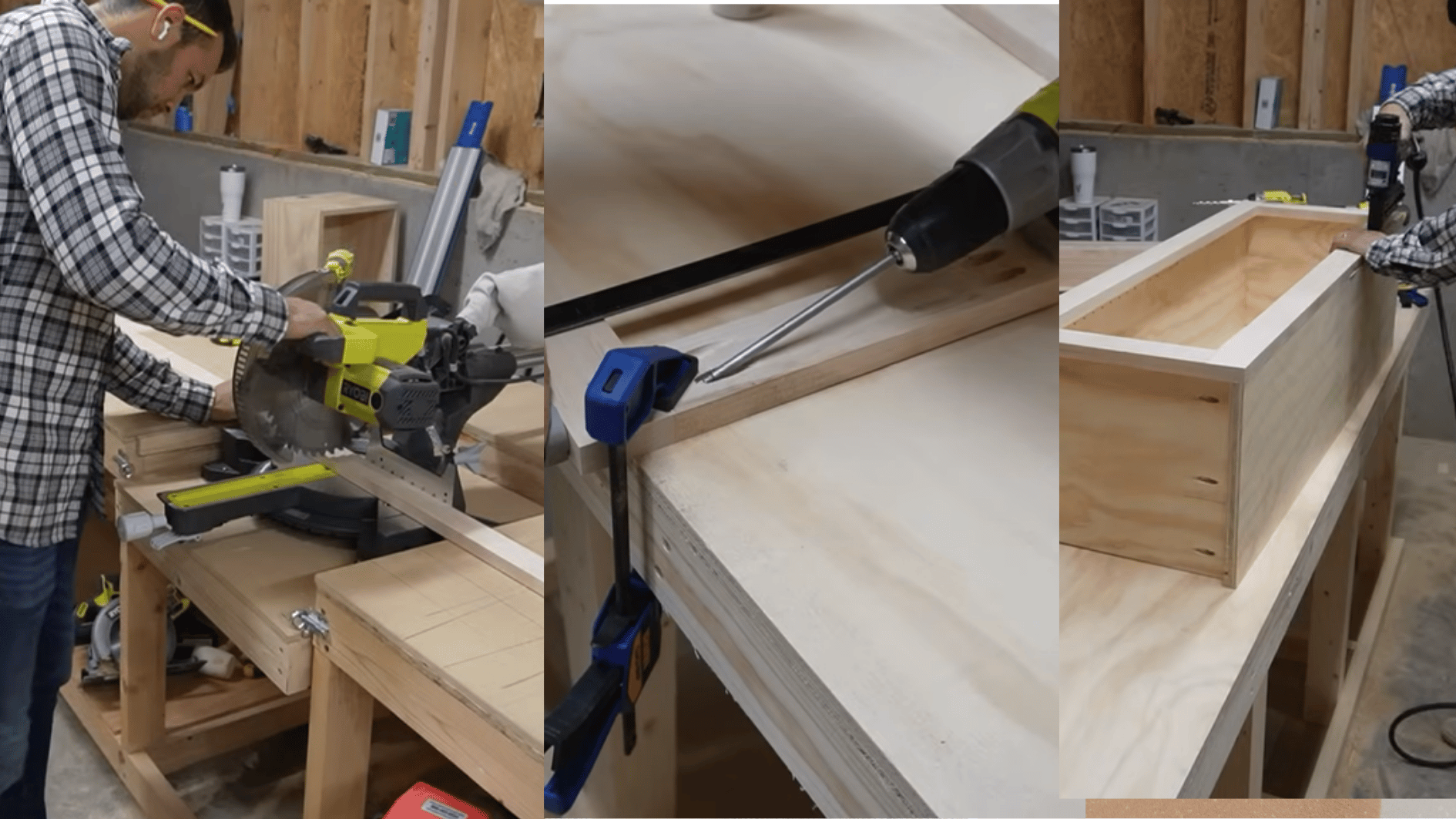

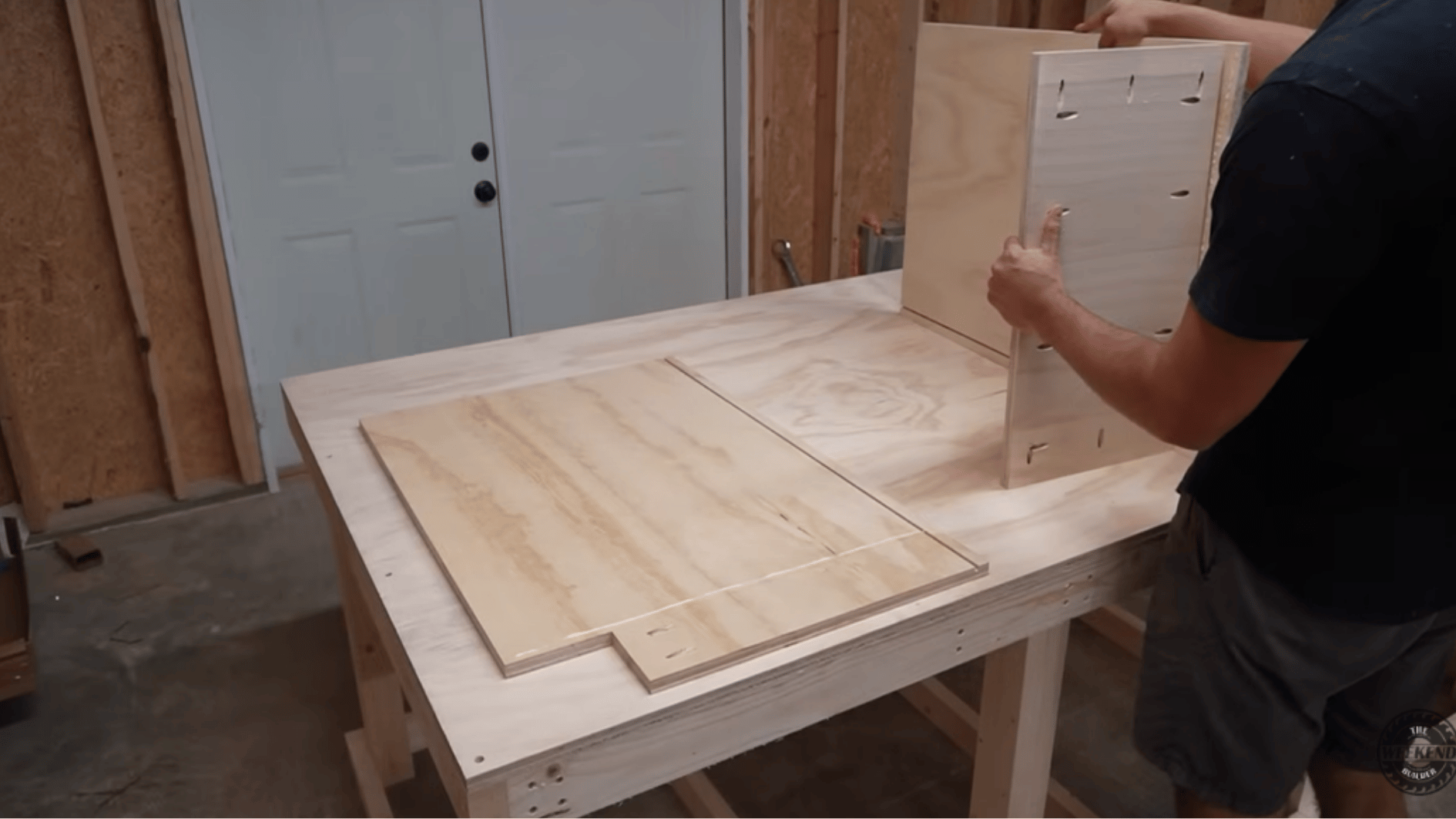

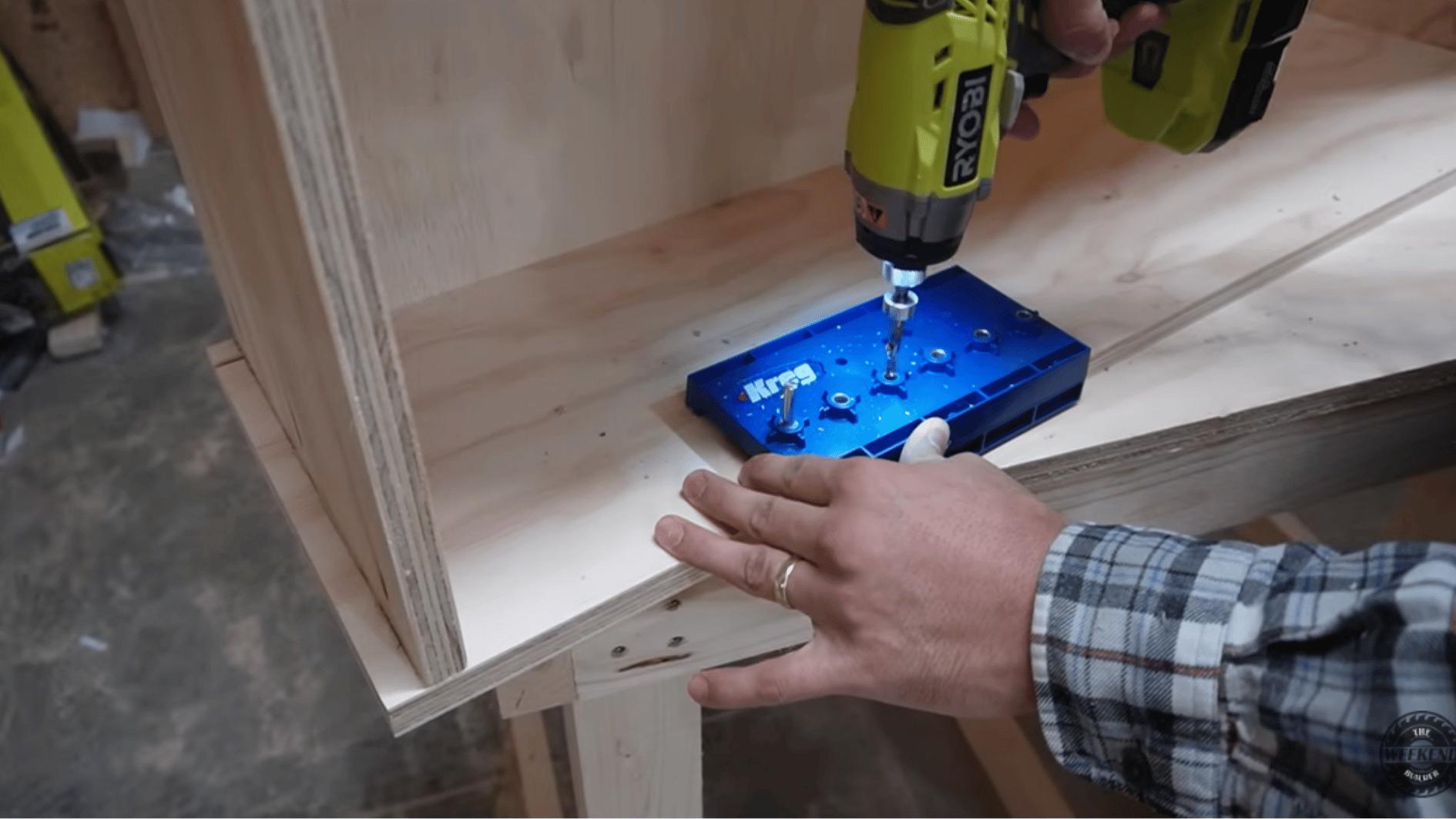

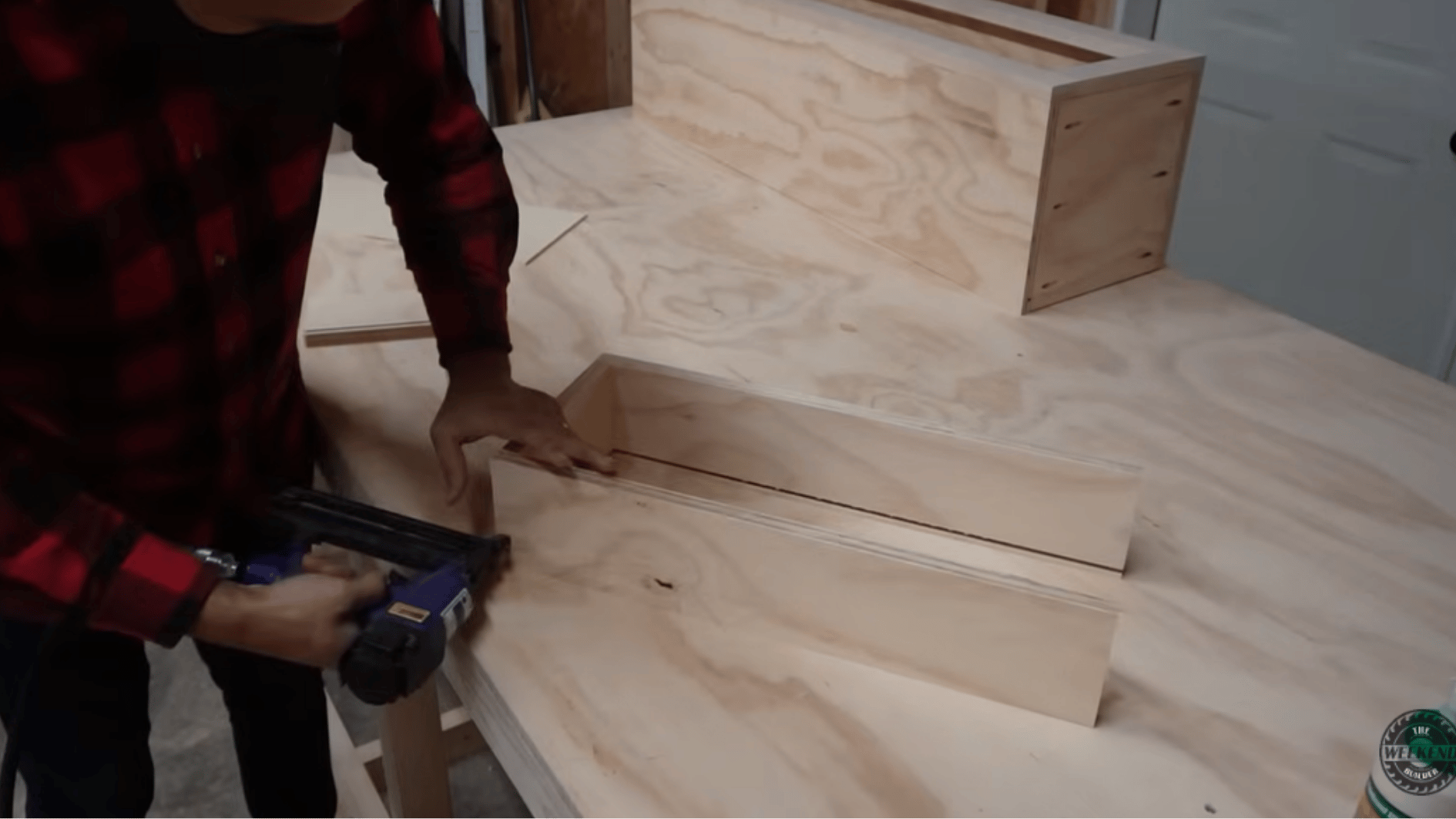

Step 3: Assemble the Cabinet Boxes

Once all the pieces are ready, begin building the cabinet boxes. This forms the main structure of each cabinet.

What You’ll Do:

• Drill pocket holes in the cabinet parts
• Apply wood glue to the joints
• Secure panels using brad nails and pocket screws
• Install the back panel
• Add support stretchers for strength

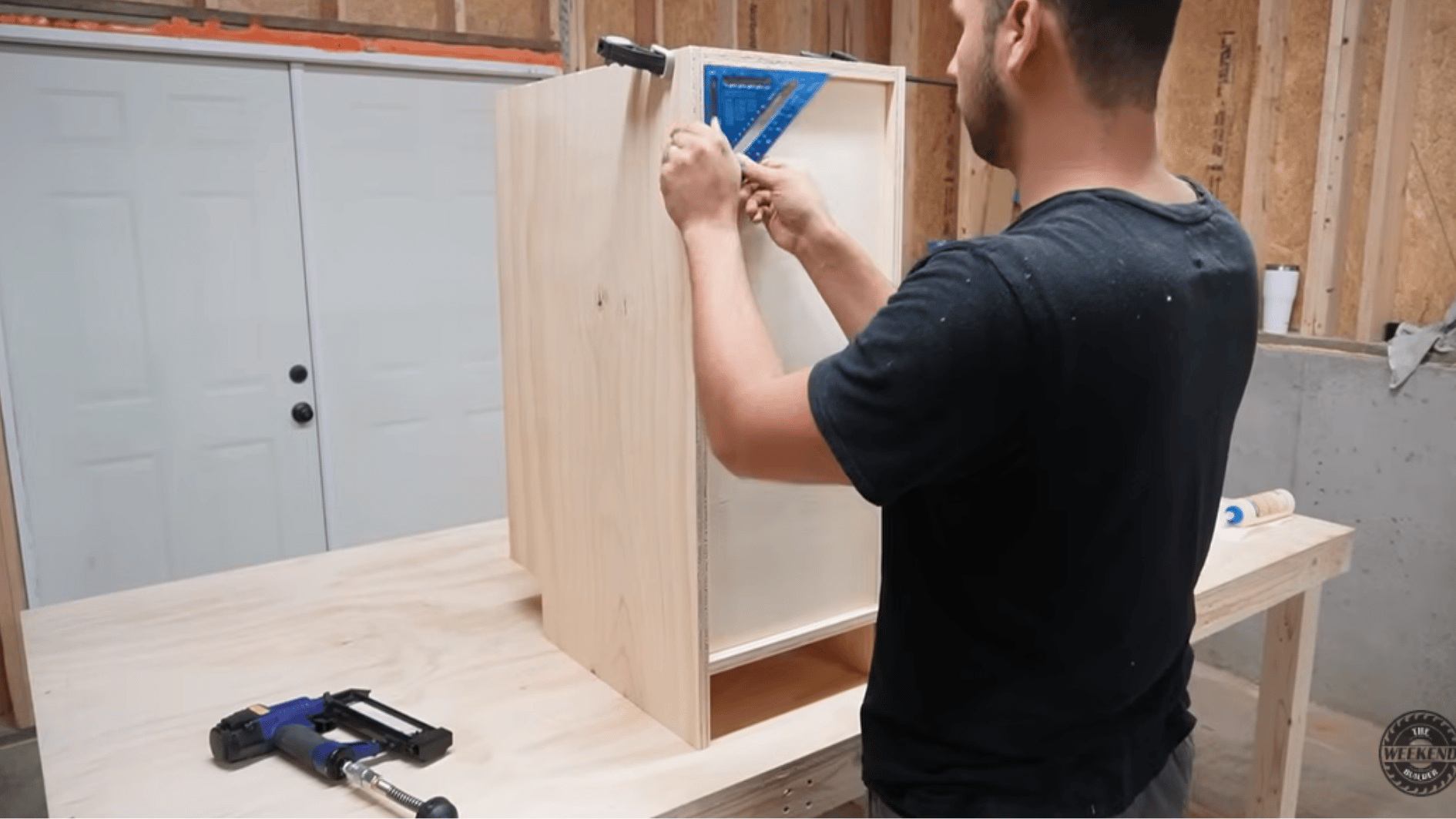

Step 4: Check Every Cabinet for Square

A cabinet that isn’t square can cause problems later when installing doors and drawers. This step helps keep everything aligned.

What You’ll Do:

• Measure diagonally to check alignment
• Confirm all corners are square
• Make adjustments before moving to the next step

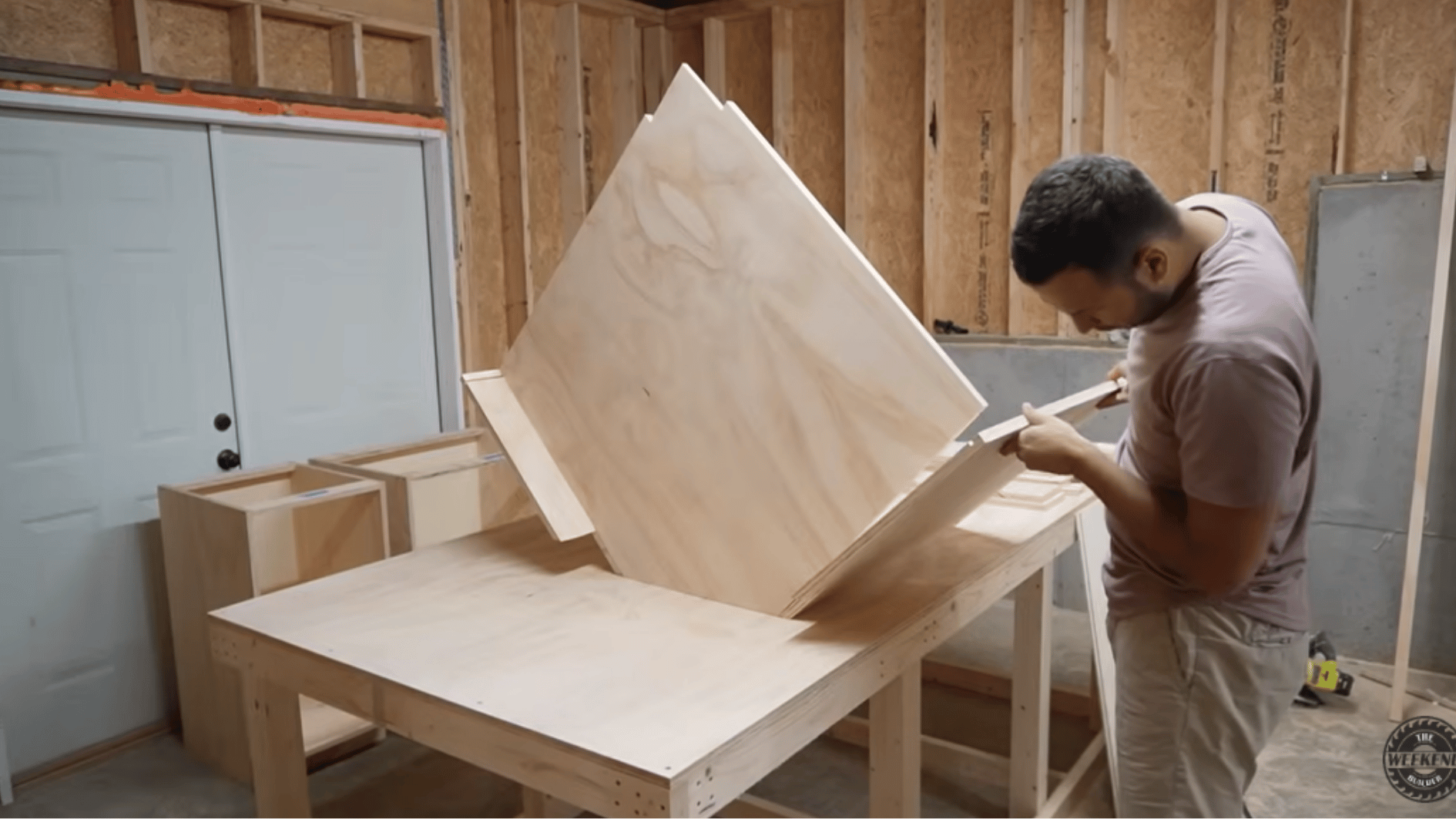

Step 5: Build Corner Cabinets and Specialty Units

Corner cabinets and other custom pieces follow the same basic process but often require different measurements.

What You’ll Do:

• Assemble specialty cabinets using the same construction method
• Adjust dimensions for unique layouts
• Double-check measurements before assembly

Step 6: Drill Shelf Pin Holes

Shelf pinholes allow shelves to be adjusted later, giving the cabinets greater flexibility.

What You’ll Do:

• Use a shelf pin jig for consistent spacing
• Drill matching holes on both cabinet sides
• Prepare cabinets for adjustable shelving

Step 7: Build and Attach Face Frames

Face frames add strength to the cabinets and create a finished look on the front.

What You’ll Do:

• Cut maple rails and stiles
• Assemble the face frames with pocket screws
• Attach the frames to the cabinet boxes
• Check for a flush fit along the edges

Step 8: Build the Drawer Boxes

With the cabinet structure complete, move on to building the drawers.

What You’ll Do:

• Cut drawer sides, fronts, and backs
• Create grooves for the drawer bottoms
• Assemble the drawer boxes
• Test the fit before installation

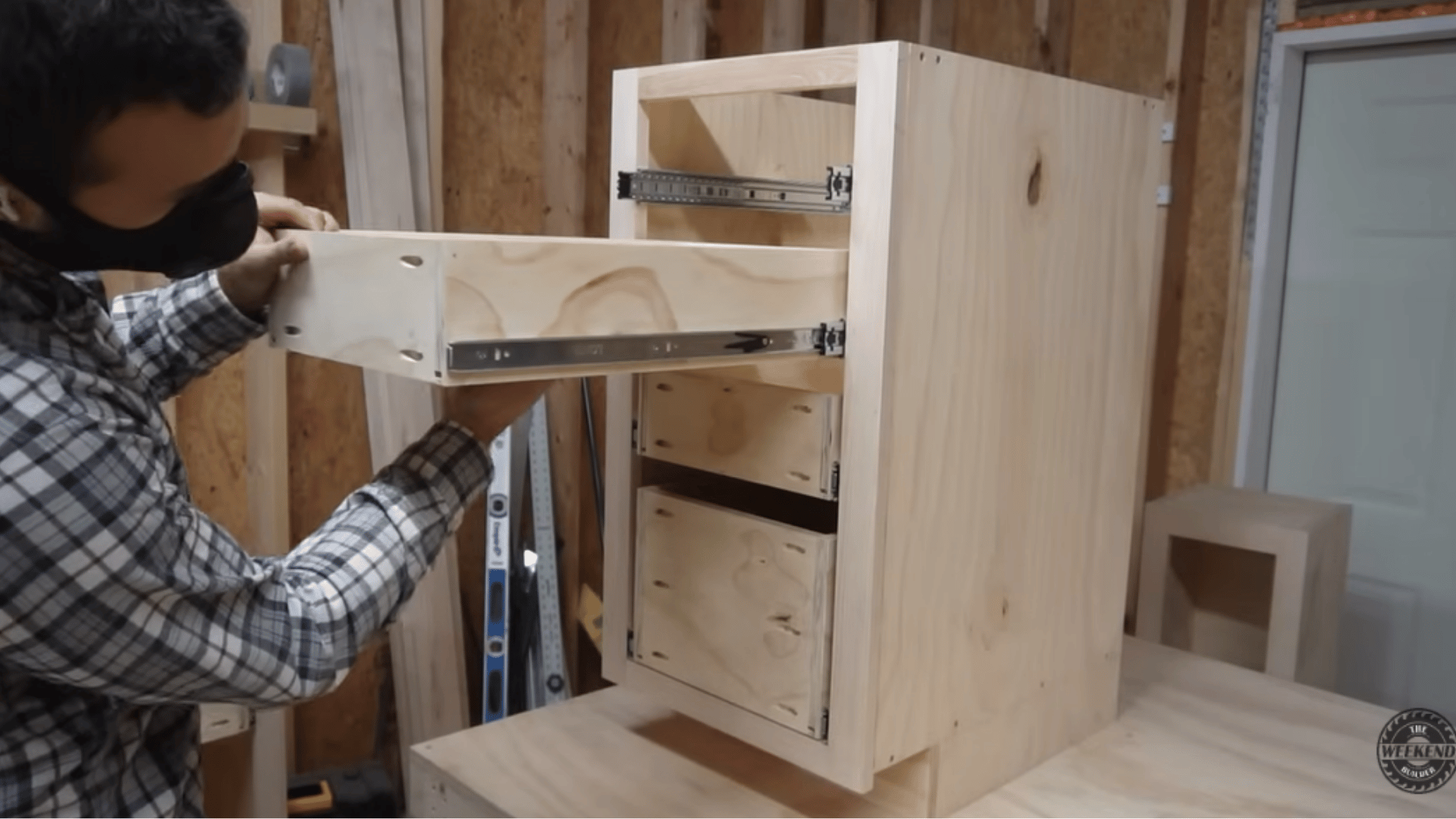

Step 9: Install Soft-Close Drawer Slides

Drawer slides help the drawers move smoothly and stay aligned.

What You’ll Do:

• Mount the cabinet-side slides
• Attach the drawer-side hardware
• Insert the drawers
• Test movement and make adjustments if needed

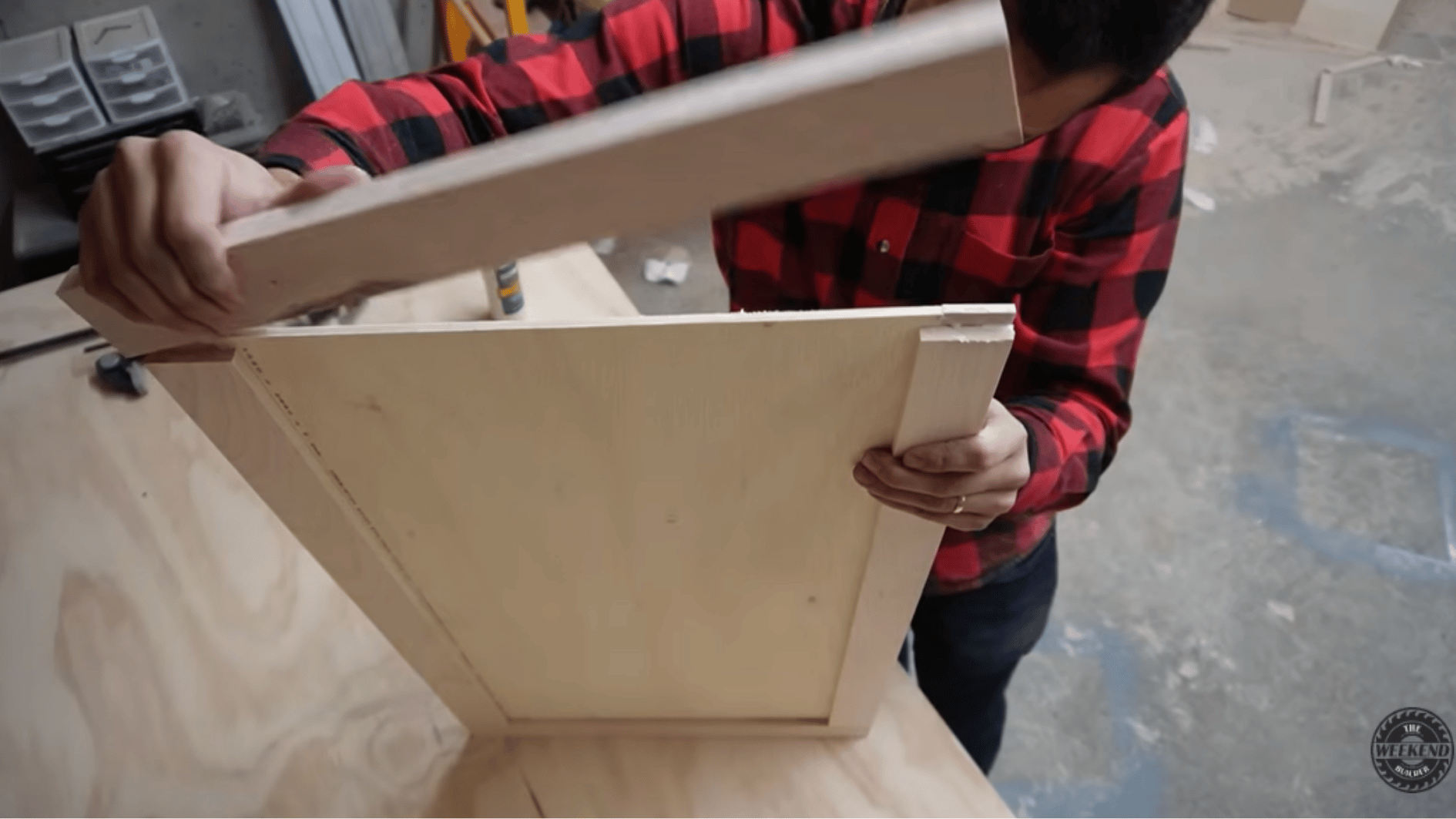

Step 10: Make Shaker-Style Cabinet Doors

Shaker doors are a popular choice because of their clean and simple design.

What You’ll Do:

• Cut grooves and tenons for the door frame
• Assemble the rails and stiles
• Insert the center panels
• Clamp the doors until fully cured

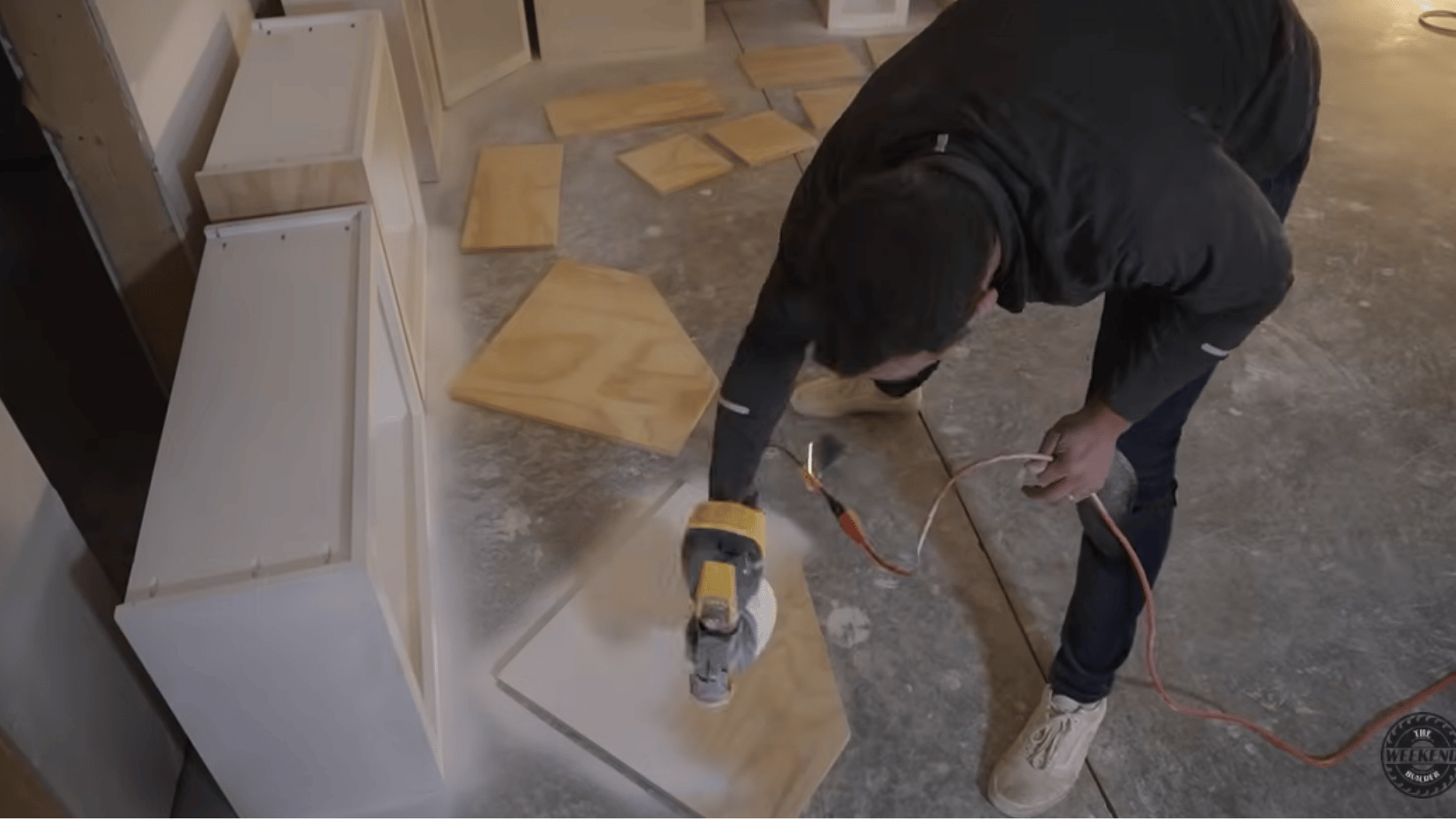

Step 11: Prepare, Prime, and Paint the Cabinets

Proper finishing helps the cabinets look professional and last longer.

What You’ll Do:

• Fill holes and small gaps with wood filler
• Sand all surfaces smooth
• Apply a coat of primer
• Spray or paint the cabinets with a durable finish

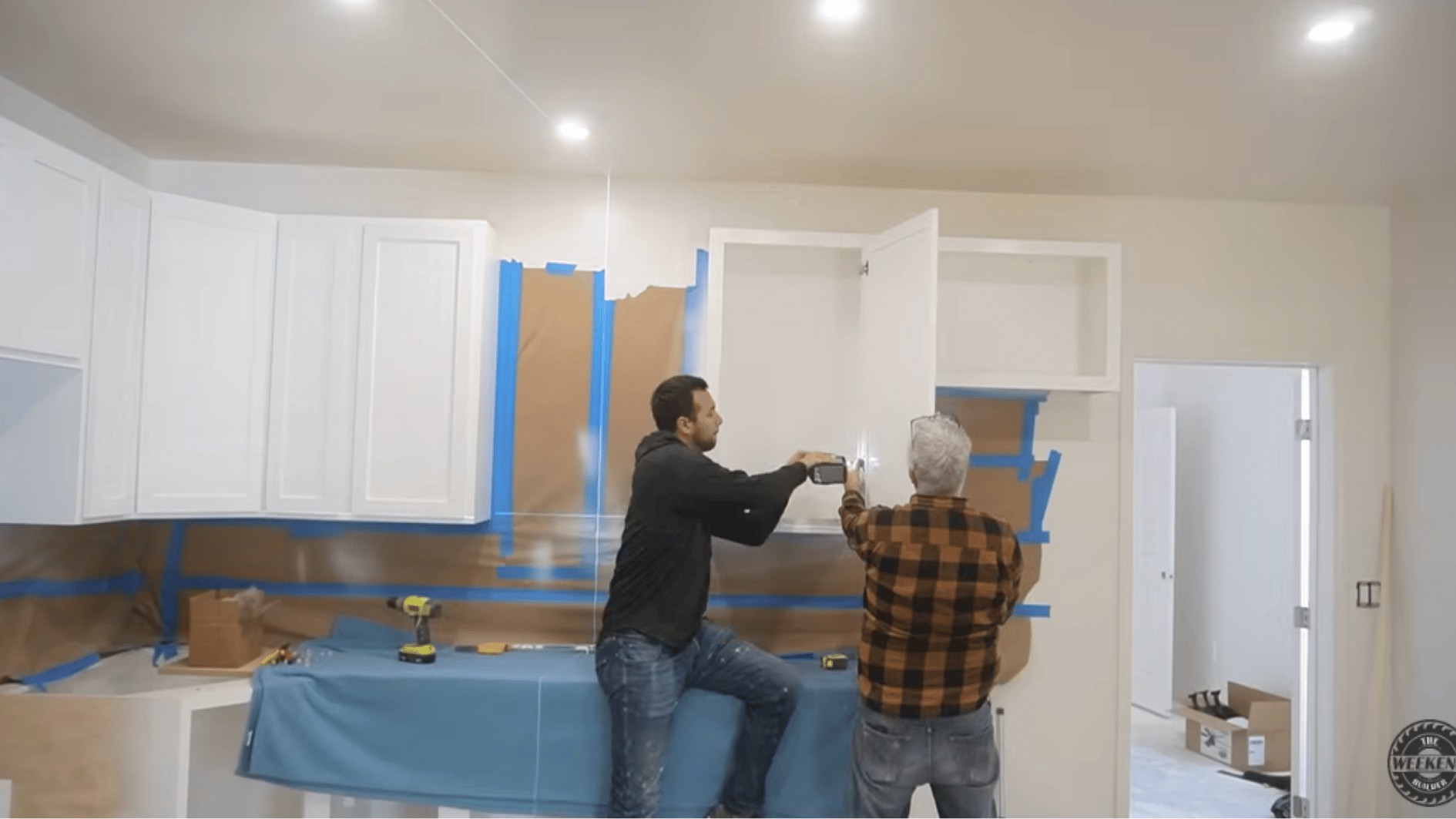

Step 12: Install the Cabinets and Hardware

The final step is to put everything in place and complete the kitchen.

What You’ll Do:

• Install the upper cabinets first
• Secure the lower cabinets to the wall studs
• Add shelves, drawers, and cabinet doors
• Install handles, pulls, and other hardware

DIY Kitchen Cabinet Cost Breakdown

One of the biggest reasons people choose to build their own cabinets is the potential cost savings. The video shares the actual project expenses, giving you a realistic idea of what to expect before starting your own build.

Actual Costs From the Project

The following breakdown shows where the money was spent throughout the project. Reviewing the costs beforehand can help you plan your budget and decide where you may want to save or spend more on materials and hardware for your DIY cabinet build.

Material/Item	Cost	Purpose
3/4-Inch Plywood	$600	Cabinet boxes and shelves
1/4-Inch Plywood	$200	Back panels and drawer bottoms
Maple Lumber	$520	Face frames
Paint	$150	Cabinet finish
Router Bit Set	$75	Shaker door construction
Hinges	$87	Cabinet door hardware
Drawer Slides	$50	Drawer operation
Material Total	$1,682	Core project materials
Approximate Project Total	$2,000	Materials and extra supplies

How Much Money DIY Kitchen Cabinets Can Save

One of the most rewarding parts of this project was seeing how much money could be saved compared to buying similar cabinets.

Even after purchasing quality materials, the total cost remained significantly lower than that of many store-bought options.

• The completed project cost approximately $2,000.
• Comparable pre-made cabinets were estimated to cost around $5,000 before taxes and shipping.
• Building the cabinets yourself resulted in savings of roughly $3,000.
• The DIY version also included upgraded materials and soft-close hardware that may cost extra on factory-built cabinets.
• Custom sizing ensured every cabinet fit the space without incurring additional customization fees.

Conclusion

Building your own DIY kitchen cabinets may take time and effort, but it can be a great way to create a kitchen that fits your space and budget.

From cutting plywood and building cabinet boxes to making drawers, shaker-style doors, painting, and installation, each step plays an important role in the final result.

This DIY cabinet project shows that with the right tools and materials and a little patience, you can build strong, attractive cabinets without spending a fortune.

Take your time with each stage, and enjoy watching your kitchen come together one step at a time.

Frequently Asked Questions

How Long Does It Take to Build DIY Kitchen Cabinets?

The timeline depends on the kitchen size and your experience level, but most DIY cabinet projects take anywhere from several days to a few weeks.

Can DIY Kitchen Cabinets Increase Home Value?

Well-built cabinets can enhance the appearance and functionality of a kitchen, making the home more appealing to future buyers.

Do I Need Advanced Woodworking Skills to Build Kitchen Cabinets?

No. Basic measuring, cutting, and assembly skills are usually enough to get started, especially when following a detailed tutorial.

What is the Best Wood for Shaker-Style Cabinet Doors?

Hardwoods like maple are a popular choice because they are strong, smooth, and hold paint well.
