Infinity Pool Design: Engineering, Build, and Cost

You have probably seen a pool where the water seems to disappear straight into the horizon. The effect looks effortless, but there is considerably more behind it than the edge itself suggests.

I find infinity pool design becomes genuinely interesting once you look past the visual and into what actually makes it work.

The engineering, the site planning, the construction sequence – each part connects to the next in ways that are worth understanding before any decisions are made.

This blog covers how the infinity edge effect works, what goes into engineering and building one, the finish options available, and what influences the overall cost and long-term upkeep.

What is an Infinity Pool?

An infinity pool is a swimming pool with a lowered edge that lets water flow over the side, creating the illusion of no visible boundary.

This infinity pool design is also known as a vanishing-edge pool or negative-edge pool. From certain viewpoints, the water appears to meet the ocean, landscape, or horizon. The lowered edge is what creates this visual effect.

In my experience, the effect is most convincing when the edge remains visually unobtrusive. Precise construction and water control help achieve that result.

As water crosses the lowered edge, it drops into a hidden catch basin below. It is then pumped back into the main pool. This circulation keeps the system operating.

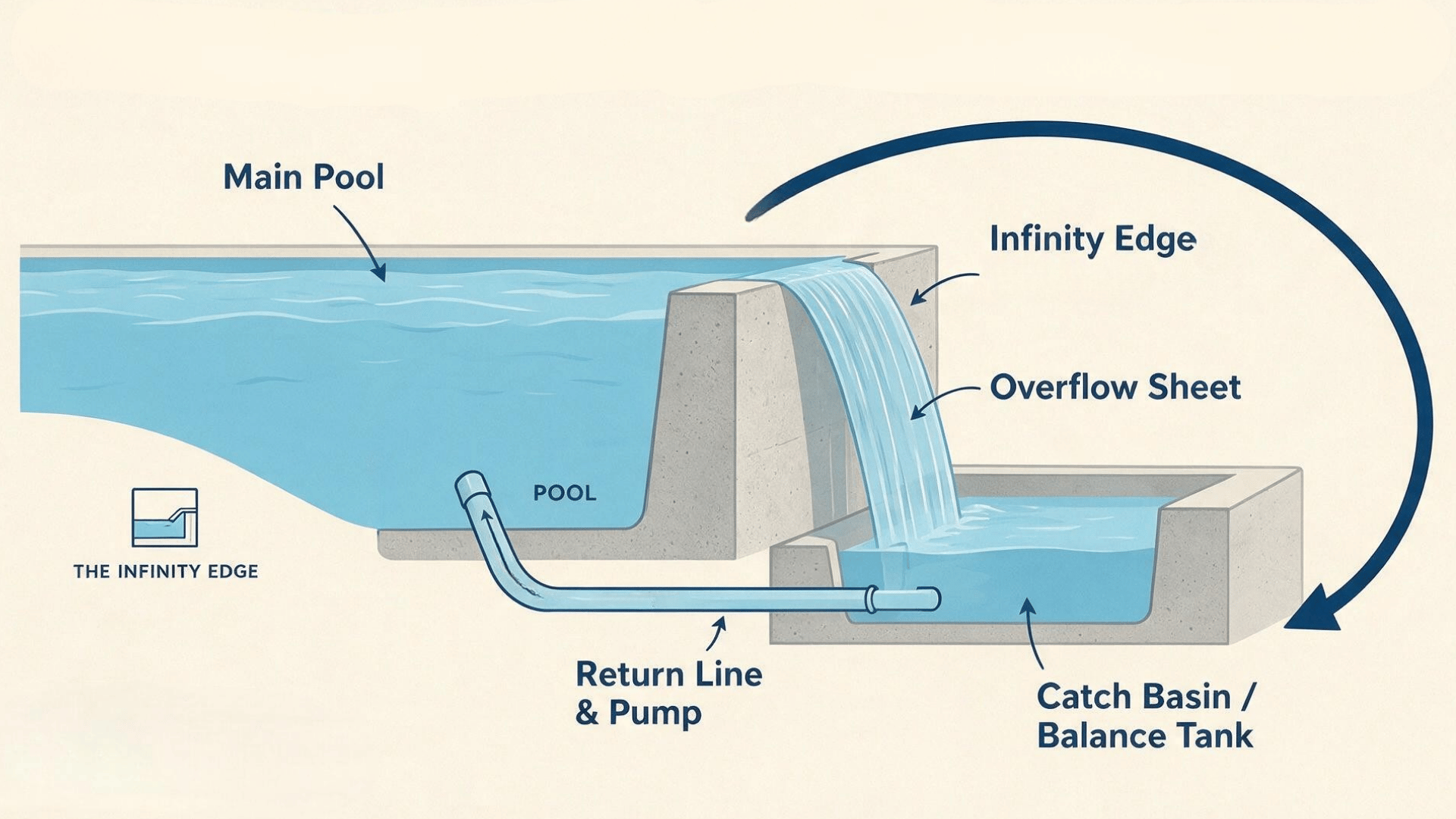

How Does the Infinity Edge Effect Work?

The infinity edge effect works by continuously moving water over a lowered pool edge, collecting it below, and pumping it back into the main pool. This circulation is central to a working infinity pool.

• Water reaches the infinity edge: Water reaches the lowered wall and spills evenly over its surface.
• Overflow water is collected: The water falls into a hidden catch basin positioned below the edge.
• Water levels are balanced: Collected water enters a balance tank that manages volume changes.
• Water returns to the pool: A pump moves the water through filtration before returning it to the main pool.
• The cycle continues: Returned water restores the pool level so the overflow process can continue.

What Site Conditions Affect an Infinity Pool Design?

Site conditions affect the placement and engineering of an infinity pool. Four factors matter most: slope, elevation, sightlines, and ground conditions.

Slope and elevation influence how the overflow edge is positioned. A natural slope can provide the needed drop. However, you can build an infinity pool on flat ground.

Excavation, grading, or raised construction can create the required elevation change.

Sightlines determine where the disappearing edge will have the strongest effect. An open horizon, landscape, or body of water can provide a natural visual backdrop.

Soil and groundwater affect the structure below the pool site and also shape how long any pool installation takes, from excavation through to final testing. Unstable soil may require added foundation support.

High groundwater can increase drainage demands. These conditions inform later structural and hydraulic decisions.

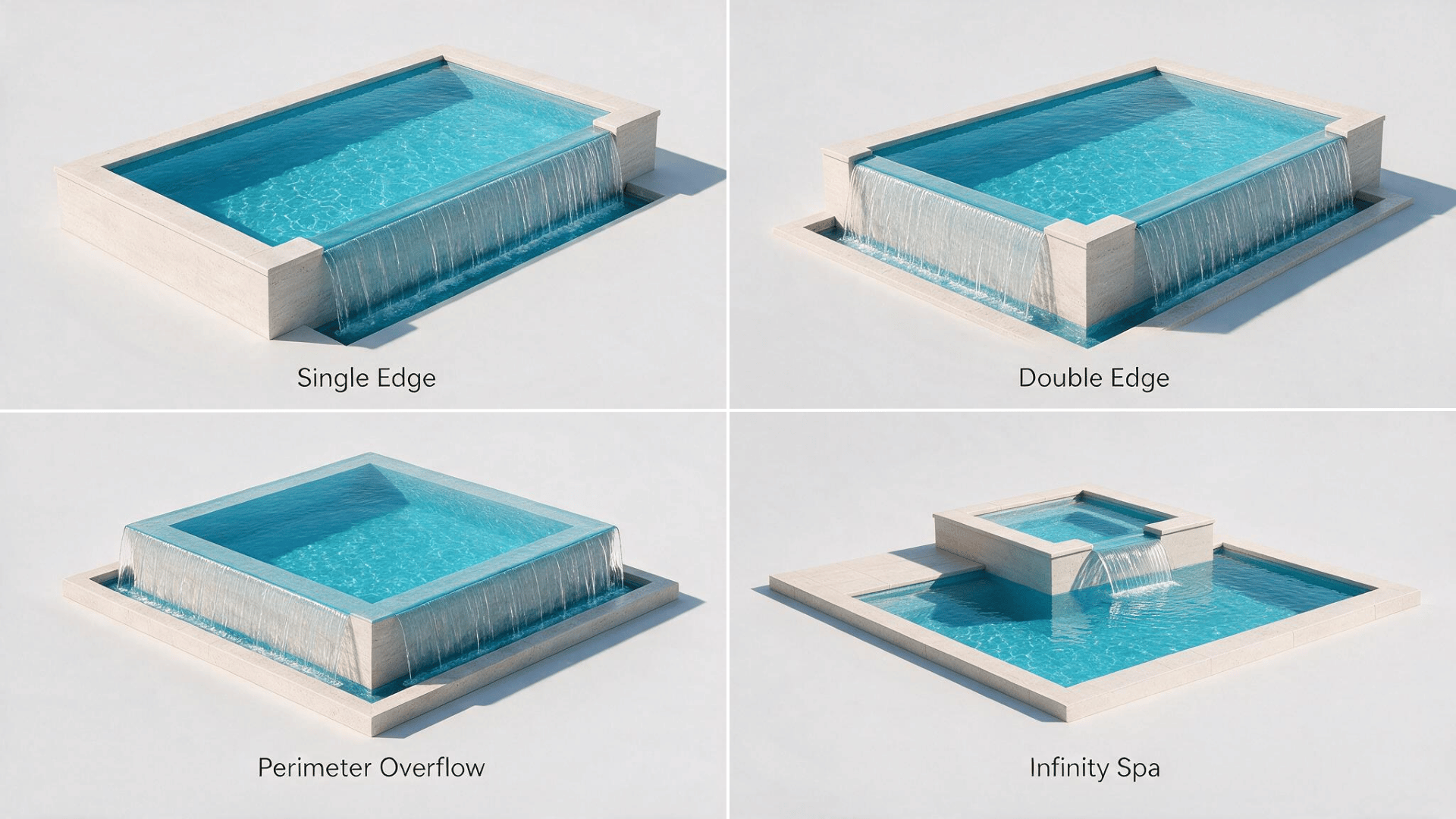

Types of Infinity Pool Edges

An infinity pool design can use several edge styles. The right option depends on the site, available views, and intended water effect. The table below compares the main types and where each works well.

Type	How It Works	Common Use
Single edge	Water spills over one side.	Properties with one main view
Double edge	Water spills over two sides.	Corner sites with multiple views
Perimeter overflow	Water spills around the pool perimeter.	Mirror-like pool surfaces
Infinity spa	Spa water spills over a lowered edge.	Combined pool and spa designs

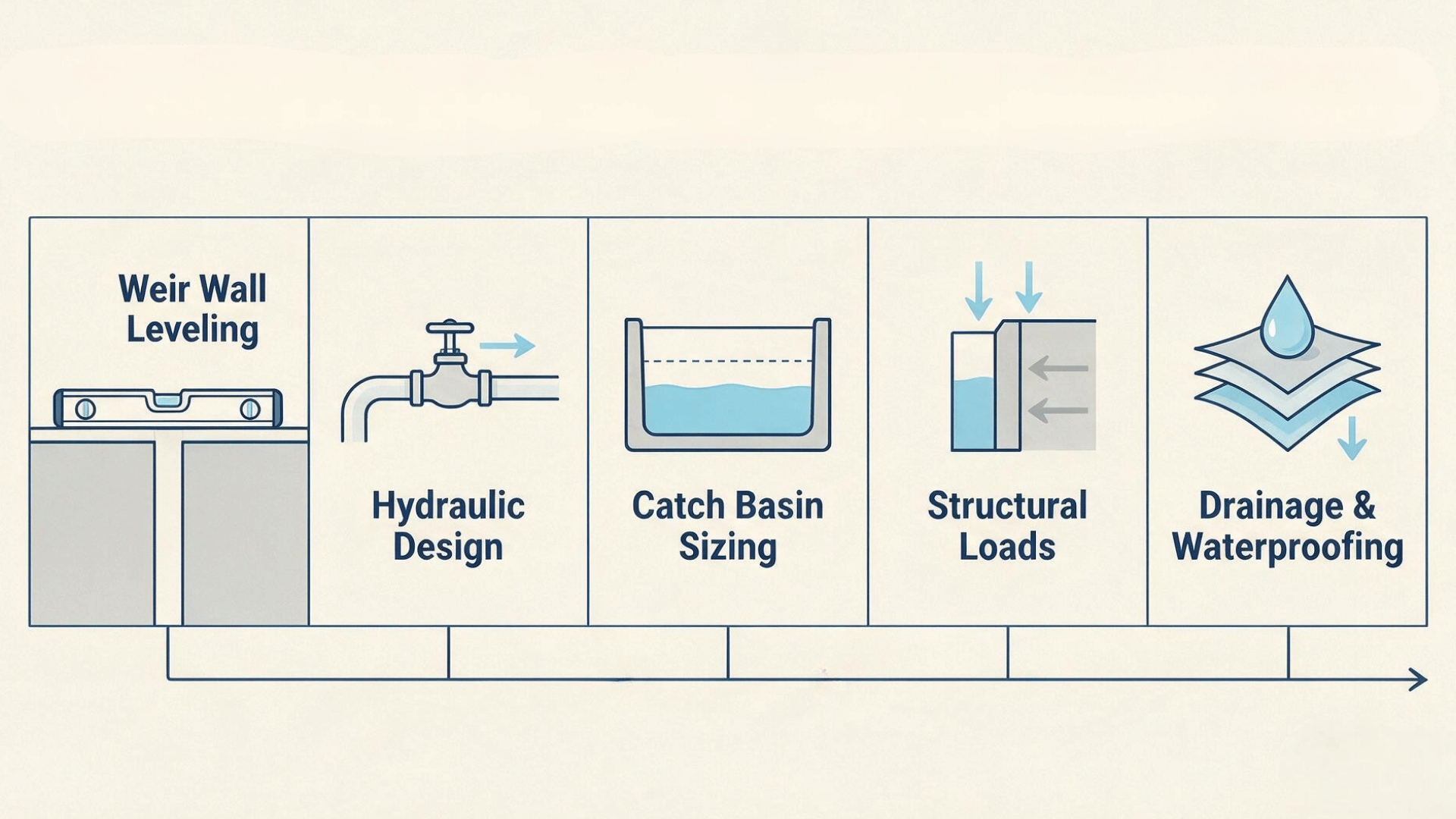

How are Infinity Pools Engineered?

A successful infinity pool design depends on precise structural and hydraulic engineering. The edge, circulation system, collection areas, and supporting structure must function together under the conditions of the specific site.

1. Weir Wall Leveling

The weir wall sets the elevation where water leaves the pool. Its top must be nearly perfectly level. Any variation can change how water spreads across the edge and interrupt the intended visual line.

• Edge alignment: Keep the weir level from end to end.
• Water distribution: Maintain consistent flow across the edge.
• Final positioning: Account for finishes that affect the completed height.

2. Hydraulic Design

The hydraulic system moves water through the infinity pool. Select pumps and piping based on the volume crossing the edge and the conditions under which the pool will operate.

• Flow demand: Calculate the water needed for the intended overflow.
• Pump capacity: Match equipment output to system requirements.
• Pipe sizing: Provide enough capacity without restricting circulation.

3. Catch Basin and Surge Tank Sizing

The catch basin receives overflow, while the surge tank accommodates changes in water volume. Their sizes are calculated for each infinity pool design rather than chosen from a single generic formula.

• Overflow capacity: Allow for water arriving from the weir.
• Swimmer displacement: Provide space for changes when people enter the pool.
• Additional water: Account for rainfall and other expected volume changes.

4. Structural Loads

The pool shell must carry the weight of the water without unwanted movement. Retaining structures may also resist pressure from surrounding soil.

Engineers consider differential settlement because movement can damage the shell or alter the infinity edge.

• Water weight: Design the shell for the pool’s full operating load.
• Earth pressure: Assess loads acting on retaining structures.
• Ground movement: Evaluate soil conditions and settlement risks.

5. Drainage and Waterproofing

Catch basins and surge tanks remain in regular contact with water, making effective waterproofing essential. Exterior drainage prevents groundwater and rainwater from building up around these structures.

• Waterproof barriers: Protect the collection structures against leakage.
• Joint sealing: Secure penetrations and connections between components.
• Site drainage: Direct groundwater and rainwater away from the structures.

Note: The Pool & Hot Tub Alliance (PHTA) publishes standards that address pool design, construction, circulation, and related safety requirements. Because structural and hydraulic demands vary by project, have a qualified engineer review your infinity pool design before construction.

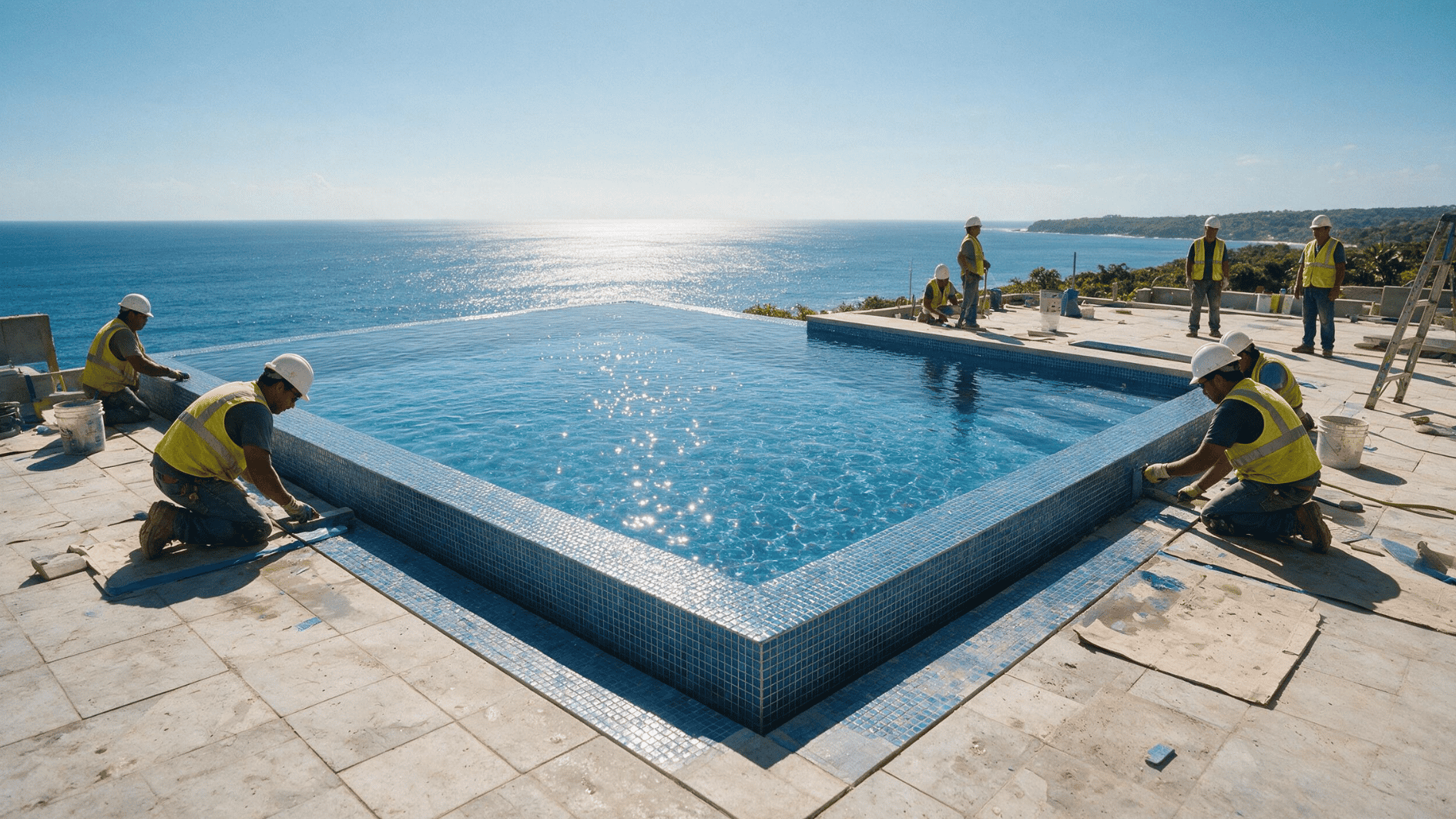

Infinity Pool Construction Techniques

An infinity pool design requires construction methods that support its exposed overflow system. Accuracy matters from forming the edge through testing the circulation system. Each stage addresses a different part of the build.

1. Precision-Forming the Weir Wall

Contractors use carefully positioned formwork to establish the weir before concrete placement. The forms must hold their intended position while concrete is placed so the finished structure matches the engineered dimensions.

During forming, contractors focus on:

• Setting the top elevation accurately
• Keeping the edge straight from end to end
• Matching the specified edge geometry

Tip: Verify the weir elevation before concrete placement, when form adjustments are still practical.

2. Reinforcement and Shell Construction

Steel reinforcement strengthens the pool shell and supports areas exposed to water and earth loads. Shotcrete or gunite is placed around this framework to create the main structure. Application must follow the engineered dimensions around the pool and collection areas.

During shell construction, contractors focus on:

• Installing reinforcement according to structural plans
• Building the required shell thickness and shape
• Forming sound connections between adjoining structures

3. Construction Sequencing

The order of work is especially important because much of the plumbing becomes concealed. Structural work comes first. Plumbing and equipment installation follow, while waterproofing and finishes come later.

During sequencing, contractors focus on:

• Completing structural components before concealed systems
• Pressure-testing plumbing before covering connections
• Waterproofing only after underlying work passes inspection

4. System Testing and Balancing

Before final finish work, the circulation system is operated under expected conditions. This reveals how water behaves across the edge and how effectively the collection system handles the returning volume.

During testing, contractors focus on:

• Observing the water sheet across the weir
• Checking catch-basin performance during operation
• Fine-tuning circulation before finishing work

Infinity Pool Finishes and Materials

The interior finish affects both how the pool looks and how convincingly the vanishing edge reads from a distance.

And repairing any pool deck surfaces surrounding the structure deserves the same level of material consideration to keep the overall quality consistent.

Color matters as much as material: a finish that closely matches the surrounding landscape or body of water strengthens the illusion considerably.

Common finish options and what each offers:

• Glass tile: reflects light and color most vividly; works well where the pool faces open water or sky
• Natural stone: travertine, limestone, and slate create an organic look that blends into garden and hillside settings
• Porcelain tile: durable, low-maintenance, and available in a wide range of colors and textures
• Exposed aggregate: adds slip resistance and a textured finish suited to high-use pools

Note: Choose the finish after confirming the edge orientation and primary viewpoint, not before.

How Much Does an Infinity Pool Cost?

An infinity pool typically costs 30% to 50% more than a comparable conventional pool. The overflow system, structural engineering, and added plumbing are the primary cost drivers.

Site complexity, edge configuration, and finish choices can push a project toward the higher end of that range – or beyond it.

Cost Factor	Approx. Cost Impact	What Drives It Higher
Base construction	$80,000 – $150,000+	Pool size, shape, and site excavation
Structural engineering	$3,000 – $10,000	Complex slopes, retaining walls, unstable soil
Overflow system	$10,000 – $20,000	Multiple edges, longer weir wall
Plumbing and pumps	$5,000 – $15,000	High-volume circulation, long pipe runs
Waterproofing	$3,000 – $8,000	Large catch basin and surge tank area
Finishes	$5,000 – $30,000+	Glass tile or natural stone vs porcelain
Lighting	$2,000 – $10,000	LED edge lighting, underwater fixtures
Ongoing maintenance	$3,000 – $6,000/year	Complex mechanical system, debris management

Final pricing varies significantly by region, pool size, and design scope. The table above identifies where budget pressure typically builds – use it as a planning reference before entering contractor conversations.

Maintenance & Common Design Mistakes

An infinity pool requires attention to both the main pool and its overflow system. Routine service and checks can also reveal problems before they become costly.

• Clean the catch basin: Remove leaves and debris regularly.
• Check pumps and plumbing: Look for leaks or reduced flow.
• Watch water levels: Keep enough water for steady overflow.
• Avoid poor leveling: An uneven weir creates inconsistent flow.
• Size collection areas correctly: Small basins may not handle overflow.
• Plan equipment early: Leave enough space for installation and servicing.
• Check local codes: Review permits and requirements before construction.

Final Thoughts

An infinity pool design is as much an engineering project as it is a styling one. The visual effect only holds up when the system behind it is planned and built with precision from the start.

I have found that the projects that run smoothly are the ones where site conditions, structural demands, and material choices are all considered together early – not treated as separate decisions made at different stages.

If you are weighing an infinity pool for your property, start with a thorough site assessment and involve qualified professionals before committing to a design direction.

The guidance in this blog covers the key considerations across infinity pool design, construction, finishes, and cost to help you approach those early conversations with a clearer picture.

Frequently Asked Questions

Are Infinity Pools Safe for Children?

Yes. They can be, provided they meet applicable barrier, access, and pool-safety requirements and children receive proper supervision.

Do Infinity Pools Lose More Water Than Regular Pools?

Yes. They can lose more water to evaporation because water is continuously exposed to air as it passes over the edge.

Can an Infinity Pool Be Indoors?

Yes, but indoor installations need careful humidity control, ventilation, waterproofing, and moisture management.
