Parts of a Cabinet Construction: A Complete Guide
Ever wondered what makes a cabinet strong, useful, and built to last? You see them every day in kitchens, bathrooms, and laundry rooms, but there’s more to them than just doors and drawers.
Cabinets play a big role in keeping your space tidy and your stuff easy to reach.
If you’re planning a remodel, fixing old storage, or building something from scratch, it helps to understand what goes into one.
This guide breaks down each part so it’s simple to follow, even if you’re new to home projects.
You’ll find clear terms, helpful tips, and no fluff; just what you need to feel more confident about cabinets and how they come together.

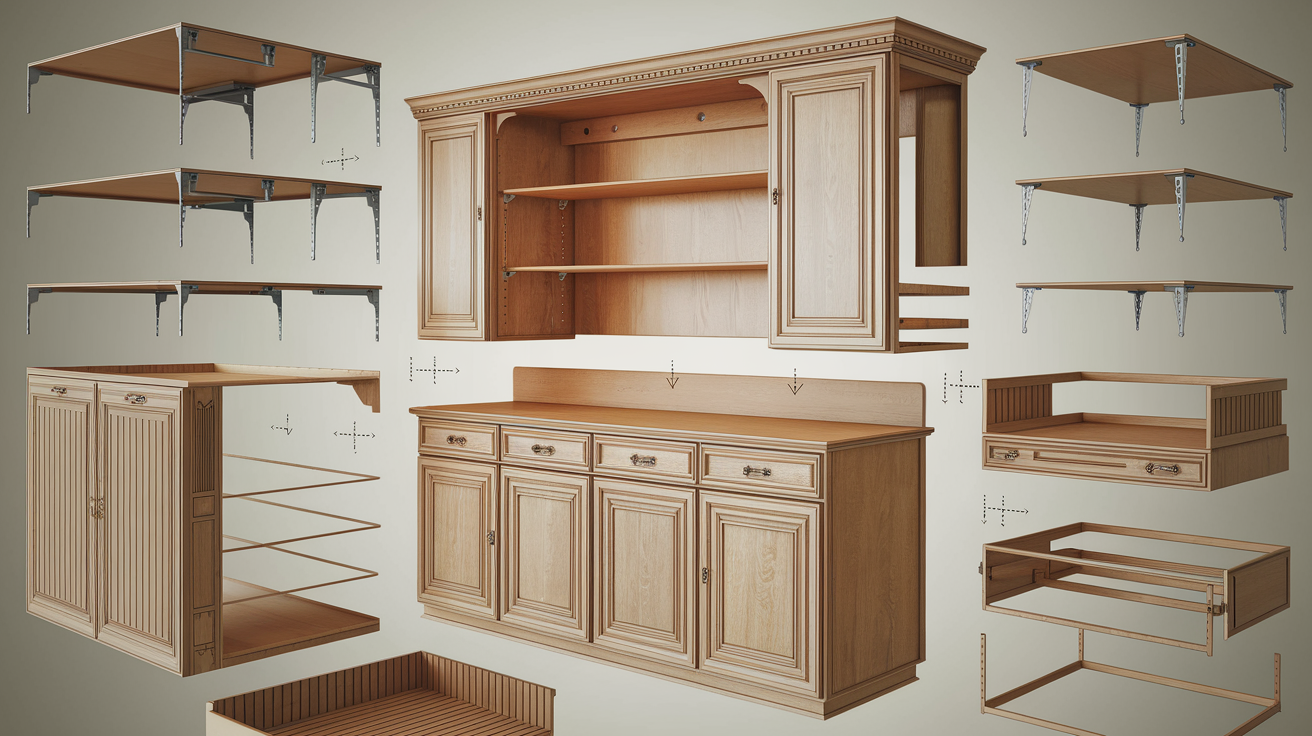

Main Cabinet Components
Understanding the basic parts of a cabinet helps you know how it works and what makes it strong. Each part has a job, from holding the frame together to letting drawers and doors open smoothly.
Once you know what goes where, it’s easier to choose or build a cabinet that fits your needs.
1. Cabinet Box or Carcass
The cabinet box, often called the carcass, forms the foundation of any cabinet. It’s the basic frame that supports everything inside and outside, from shelves to doors.
A solid cabinet box ensures durability and long-term use in daily kitchen routines. It includes four main pieces:
- Sides
- Back
- Top
- Bottom
These parts come together to form a sturdy box that keeps the structure firm and balanced.
There are different types of cabinet boxes, each designed for a specific use in the kitchen or storage areas:
- Base cabinets: Sit directly on the floor and usually support a countertop. They often hold sinks, cooktops, or workspaces.
- Wall cabinets: Mounted on the wall, these are typically placed above counters or appliances and help store items that need to stay within reach.
- Tall cabinets: Extend from the floor nearly to the ceiling. They work well as pantry storage or utility cabinets due to their large vertical space.
2. Face Frame
The face frame is a flat piece on the front of the cabinet box. It helps hold the doors and drawers in place. This part is made with two vertical pieces (called stiles) and two horizontal pieces (called rails).
There are two main types of cabinet builds:
Framed cabinets: Use a face frame. The doors attach to this frame.
Frameless cabinets: Skip the face frame. The doors attach straight to the cabinet box, giving a cleaner look with a little more space inside.
3. Doors and Drawer Fronts
Cabinet doors and drawer fronts give your cabinet its style. They also keep things covered and out of sight.
Here are a few common styles:
- Shaker: Flat center with simple edges
- Slab: Just a flat panel, no extra detail
- Raised panel: A center that sticks out a bit from the frame
The way these panels are put together can change the look and feel of your whole space.
4. Interior Elements
Inside your cabinet, you’ll usually find shelves and drawers.
Shelves: Can be fixed or adjustable. Adjustable ones let you move them up or down to fit what you’re storing.
Drawer boxes: These come in different materials and styles. The corners might be joined with glue, staples, or stronger joints like dovetails.
5. Hardware
Hardware helps everything move and open smoothly. Common parts include:
- Hinges: These attach the doors to the cabinet. Some are visible, and others are hidden.
- Drawer slides: Lets drawers open and close. Side mount slides are easier to install, while under-mount slides are smoother and quieter.
- Knobs and pulls: These make it easy to open doors and drawers.
Cabinet Materials
Cabinets can be made from different materials. Each type has its own benefits.
- Solid wood: Strong and long-lasting but can change shape with humidity.
- Plywood: Made of thin layers of wood. It’s strong, stable, and often used for cabinet boxes.
- MDF (medium-density fiberboard): Smooth and great for painted finishes but not as water-resistant.
- Particle board: Made from small wood pieces and glue. It’s cheaper but not as strong or moisture-friendly.
You’ll usually see plywood or particle board used in the box and solid wood or MDF used in the doors and drawer fronts.

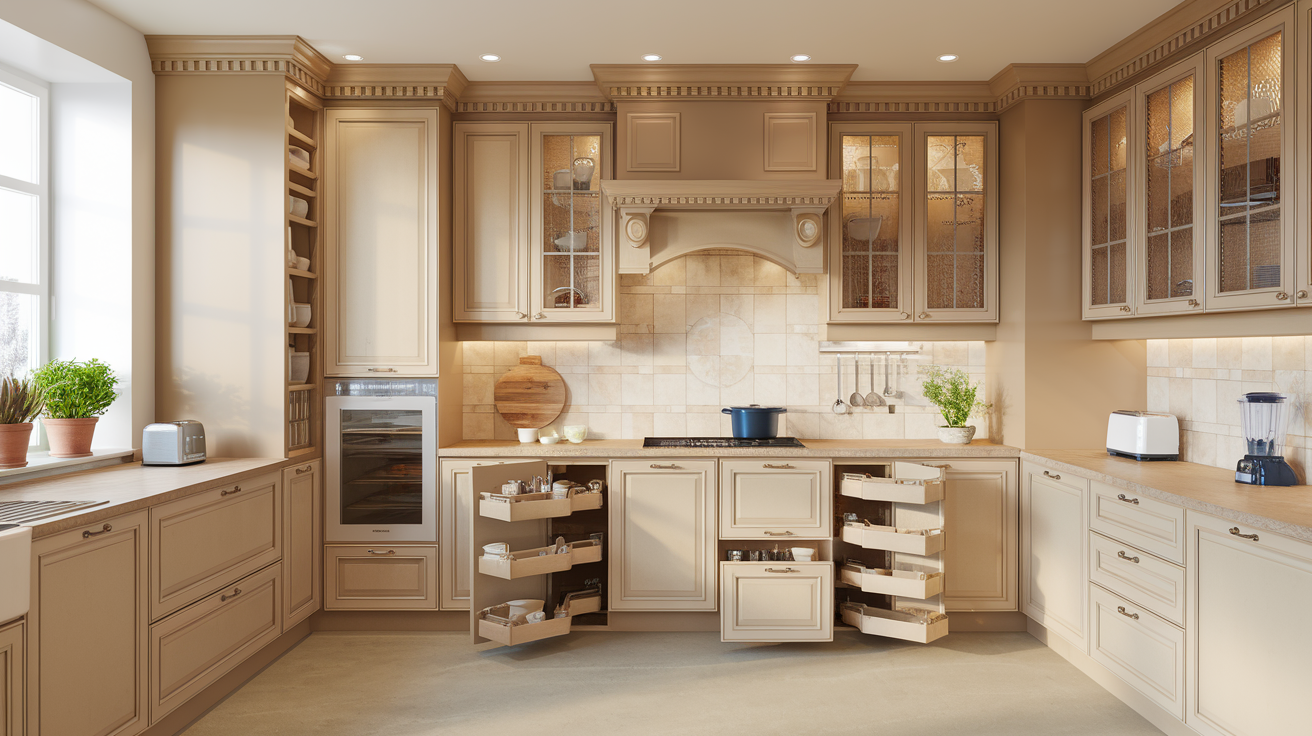

Cabinet Add-Ons and Trim
Some cabinet parts don’t stand out right away, but they help with both looks and function.
These include the base area where your feet fit, decorative edges near the ceiling, and small pieces that close gaps.
While they may seem small, they can make cabinets easier to use and help them fit better in your space.
Toe Kick
A toe kick is the small space under a base cabinet that lets your feet fit when you stand close. It’s usually about 3.5 inches tall and 3 inches deep.
Crown and Filler Molding
- Crown moulding is added at the top of the cabinet to help it meet the ceiling in a smooth way.
- Filler molding fills in the gaps between cabinets or between a cabinet and a wall.
Back Panels & Nailers
These aren’t always seen, but they’re useful.
- Back panels: Close off the back of the cabinet and keep it sturdy.
- Nailers: These are wood strips used to help attach cabinets to the wall.

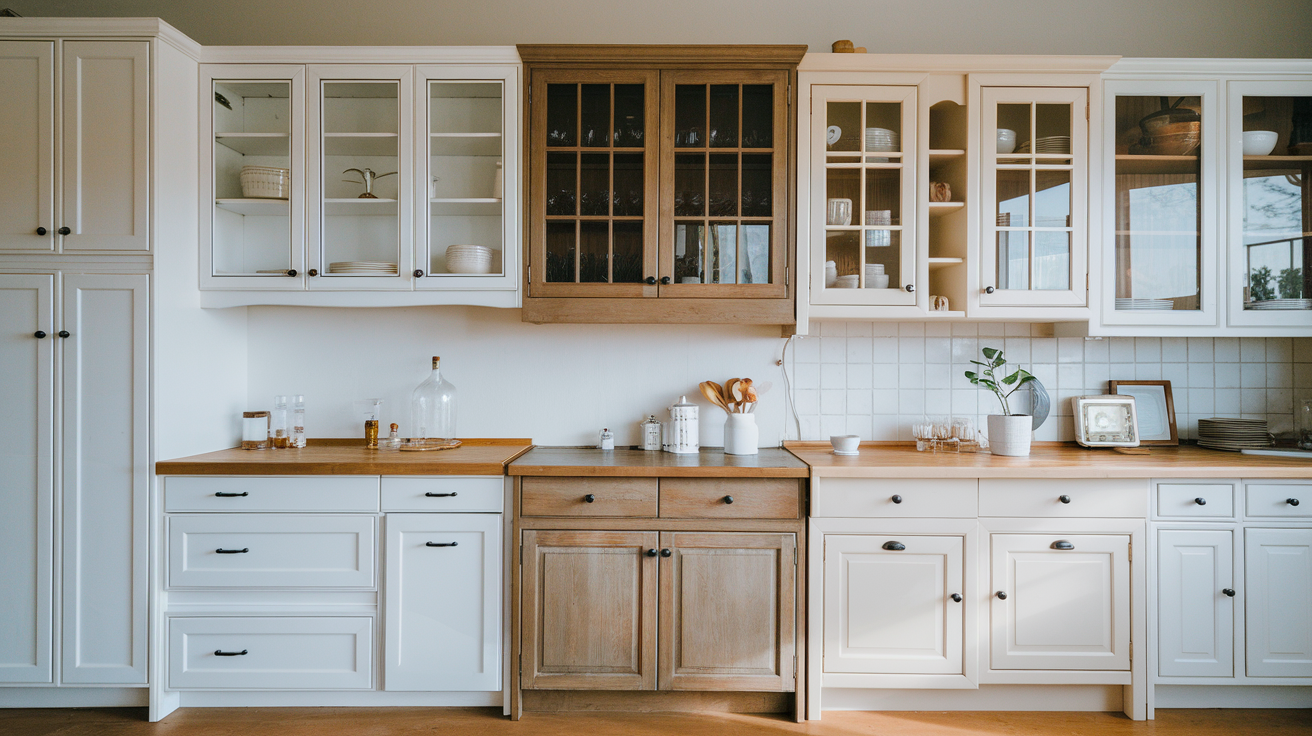

Types of Cabinet Construction
Cabinets can be built in a few different ways, and each method affects how the cabinet looks and works.
Some cabinets have a front frame for extra support, while others have a cleaner, frameless style.
You’ll also find differences between base cabinets that rest on the floor and wall cabinets that hang above counters. Knowing these types can help you choose what fits your space best.
Framed vs. Frameless
Understanding the difference between framed and frameless cabinets helps you make better choices for layout, space, and style.
Each option has a unique structure that changes how the cabinet looks and works.
Here’s a simple comparison:
| Feature | Framed Cabinets | Frameless Cabinets |
|---|---|---|
| Front Structure | Includes a face frame made of stiles and rails | No face frame; doors attach directly to the box |
| Style Fit | Common in classic or traditional spaces | Often used in modern or flat-panel designs |
| Door Mounting | Doors attach to the face frame | Doors attach to the side walls of the box |
| Interior Space | Slightly less space due to frame thickness | Offers a bit more room inside |
| Support | Added strength from face frame | Relies on strong box construction |
| Ease of Access | Slightly smaller opening due to frame edges | Wider opening with full access |
Base vs. Wall Cabinets
Base and wall cabinets serve different jobs in your space. You’ll usually find both in kitchens, bathrooms, and laundry rooms.
Knowing how they differ helps you choose what fits your needs best.
| Feature | Base Cabinets | Wall Cabinets |
|---|---|---|
| Placement | Sitting directly on the floor | Mounted on the wall above counters |
| Purpose | Supports countertops, holds sinks | Adds extra storage without using floor space |
| Depth | Usually 24 inches deep | Usually 12 inches deep |
| Common Use | Pots, pans, cleaning supplies | Dishes, spices, glassware |
| Extras | Often includes drawers or pull-outs | May have shelves or glass doors |
Understanding Cabinet Terminology
Here’s a quick list of words you might come across when reading about cabinets.
These terms can help you understand product details, talk to a contractor, or plan a project more easily.
- Carcass: This is the main box of the cabinet. It includes the sides, top, bottom, and back. Everything else—like doors and shelves—connects to this part.
- Face Frame: A flat frame is attached to the front of some cabinets. It helps support the doors and drawers and adds strength to the cabinet structure.
- Stile: The vertical pieces in a face frame. These run from top to bottom and help form the door and drawer openings.
- Rail: The horizontal parts of a face frame. The rails connect to the stiles to complete the frame.
- Toe Kick: The small cutout area at the bottom of a base cabinet. It lets your feet fit comfortably when you’re standing close and working at the counter.
- Crown Molding: Trim was added to the top edge of the wall cabinets. It gives a finished look and helps close the space between the cabinet and ceiling.
- Drawer Box: The inner part of the drawer holds items. It slides in and out of the cabinet and is often made of wood or engineered wood.
These basic terms can help you feel more prepared when you’re comparing options or asking questions. Keep this list nearby when shopping or planning; it’s handy to have.
Tips for DIY Cabinet Builders
If you’re building your own cabinet, start with simple shapes and solid measurements. For better strength, use plywood or solid wood, and always double-check that the corners are square.
Label parts before you put them together. Take your time, and keep your workspace clean and well-lit.
You’ll need a few tools like:
- Tape measure
- Drill and screws
- Saw (hand or power)
- Clamps
- Wood glue
Start with the box. It’s the easiest part and teaches you a lot. After that, try simple drawer boxes or shelves.
Final Thoughts
Now you know how each part of a cabinet works and fits together. From the box and face frame to the doors, shelves, and hardware, everything has a role.
You’ve also seen the types of cabinets, how they’re built, and the materials used. If you’re planning to build or buy, this helps you understand what to look for.
It’s easy to overlook small parts, but they make a big difference in how a cabinet works and holds up over time. Having this kind of knowledge means fewer surprises and better results.
Thanks for spending time learning about this. Hope it helps you feel more confident and ready to make the choices that work best for your space.
