How to Repair a Broken Thermostat at Home

A thermostat that stops working can throw off your entire home’s comfort – and figuring out whether it’s the thermostat itself or something deeper in the system isn’t always straightforward.

I’ve seen how quickly a small issue can feel overwhelming when you’re not sure where to start. Most of the time, the fix is simpler than it looks.

This blog walks through how to repair a broken thermostat step by step – covering everything from initial checks and wiring tests to blank screens, unresponsive systems, and knowing when the problem is better handled by a professional.

How Can You Tell If Your Thermostat Is Broken?

You can usually tell a thermostat may be broken if the screen goes blank, the HVAC system stops responding, or the temperature reading seems off.

Sometimes, the signs are more subtle, such as frequent cycling or a system that keeps running longer than expected – the kind of shifts that smart home sensors can often catch before they turn into bigger problems.

Other warning signs include unresponsive buttons, lost settings, or heating and cooling that fail to start after you adjust the temperature. These issues often suggest the thermostat isn’t communicating properly with the HVAC system.

Still, the thermostat may not always be the real problem. Power loss, loose wiring, incorrect settings, or another HVAC fault can cause similar symptoms, so start with basic troubleshooting.

Thermostat Checks Before You Start Repairs

Before repairing the thermostat, check a few basics – especially if your setup includes automated home systems, where a single device going offline can affect how the rest of the system responds.

What to Check	What to Look For	What to Do
Thermostat Mode	Wrong heat or cool setting	Select the mode you actually need
Temperature Setting	Setting doesn’t trigger the system	Raise it above room temp for heat, lower for cooling
System Delay	HVAC doesn’t start immediately	Wait a few minutes before assuming a fault
Model Number	Different thermostats use different setups	Check the unit, faceplate, or manual
Power Source	May use batteries or a C wire	Confirm how the model receives power
Visible Damage	Exposed wires or burned parts	Stop using it and avoid further repair
Unsafe Wiring	Thick wires or unfamiliar connections	Contact an HVAC professional instead

Tip: If there is prominent damage to electric wiring, then assessing your home’s electrical health before continuing any repair is the safer approach.

How to Repair a Broken Thermostat Step by Step

Testing whether a thermostat or the HVAC system is actually at fault comes down to a few careful checks. Here’s how that process works, step by step.

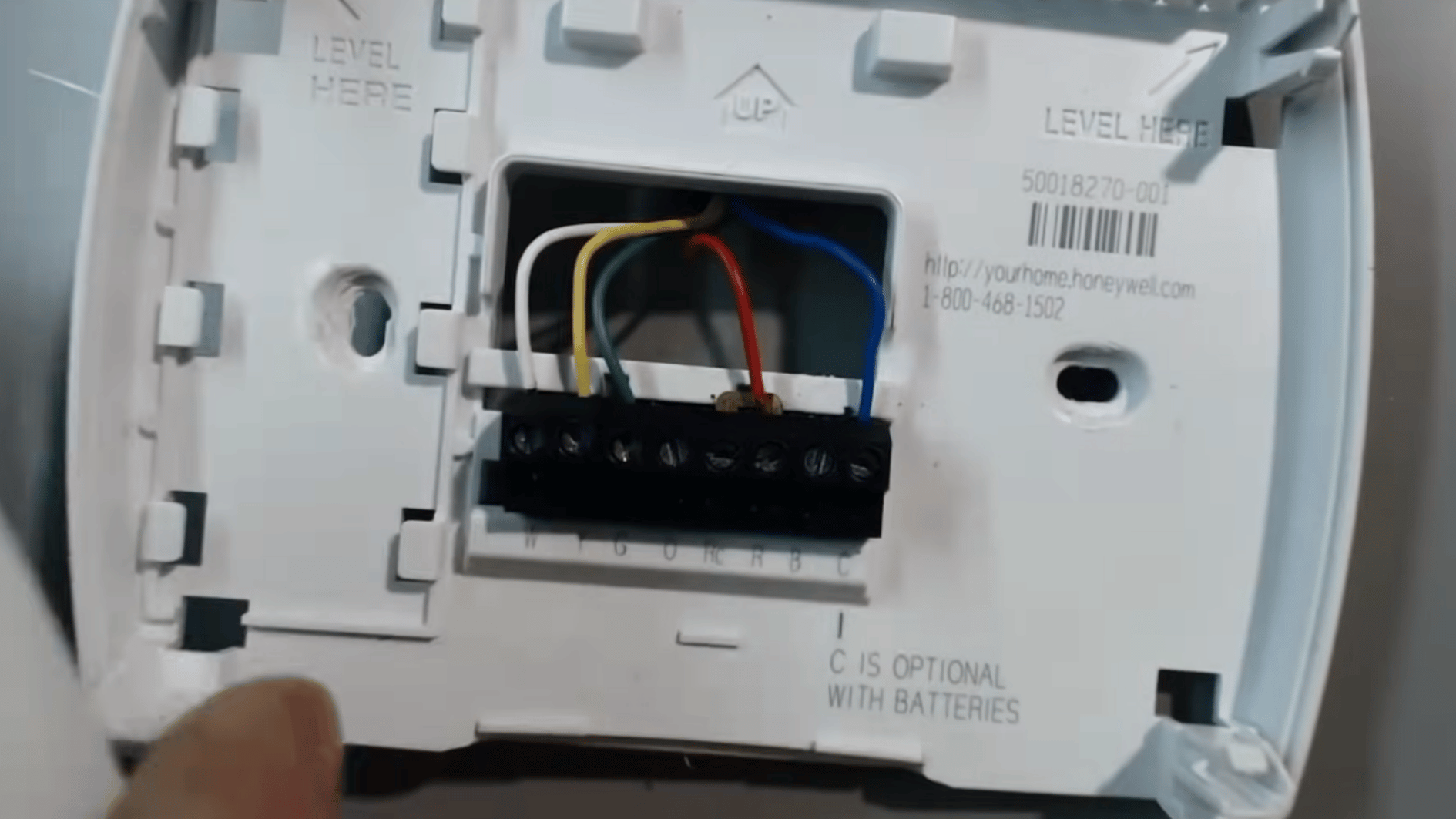

Step 1: Remove the Thermostat Faceplate

Carefully pull the thermostat faceplate away from the wall base to expose the wiring terminals behind it. Some models pull straight off, while others release from small clips.

Leave the base mounted in place and avoid tugging on the connected wires while opening the thermostat.

• Check for: Visible terminal labels
• Before Moving Anything: Take a photo of the wiring layout

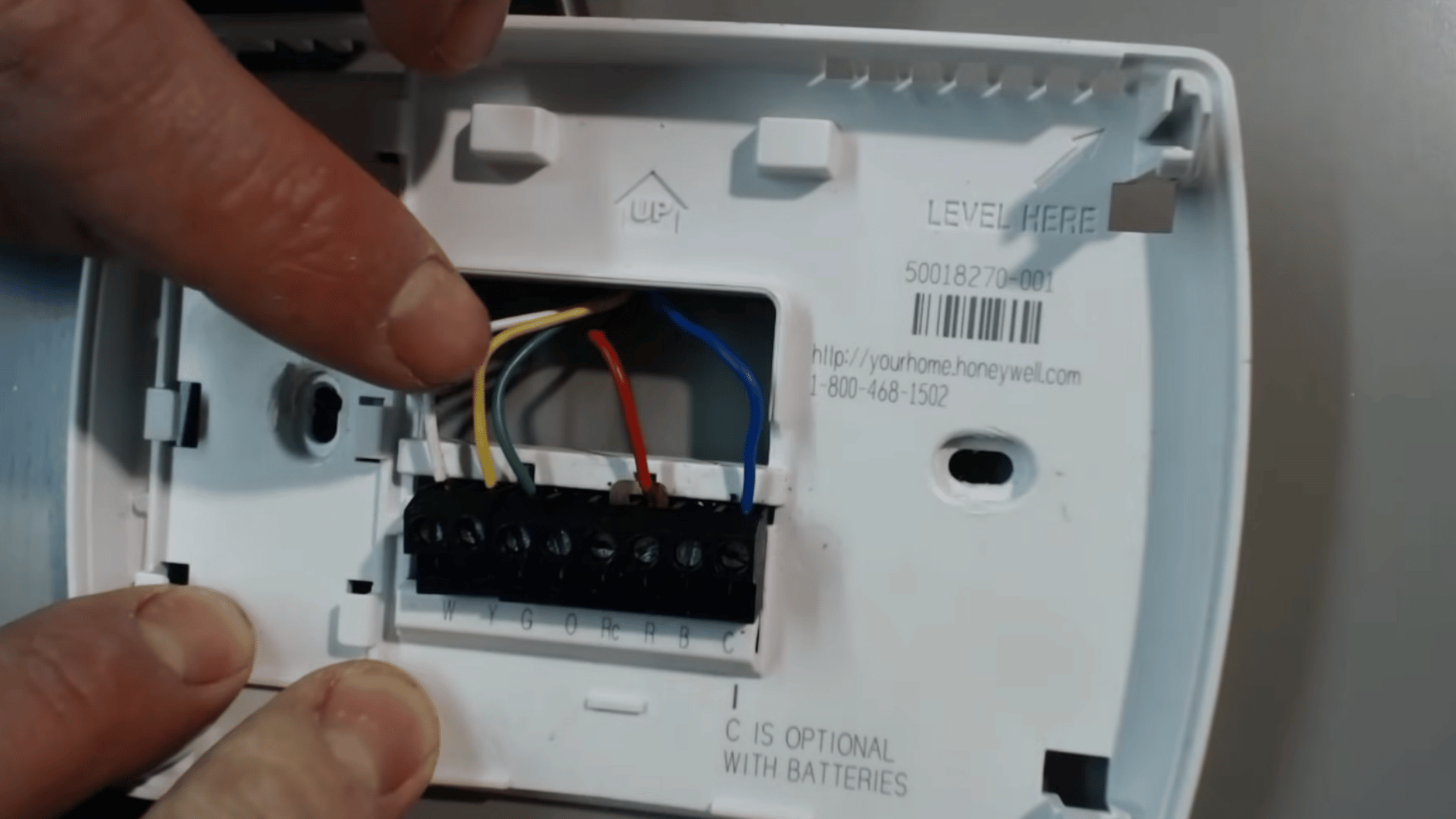

Step 2: Identify the Thermostat Wires

Look for the terminals marked R, G, W, and Y. These connections control different HVAC functions and help identify which wires are involved in the test.

For this check, R and G matter most, since you can test the blower without relying on the thermostat controls.

• R: 24-volt power
• G: Blower fan
• W: Heating
• Y: Cooling

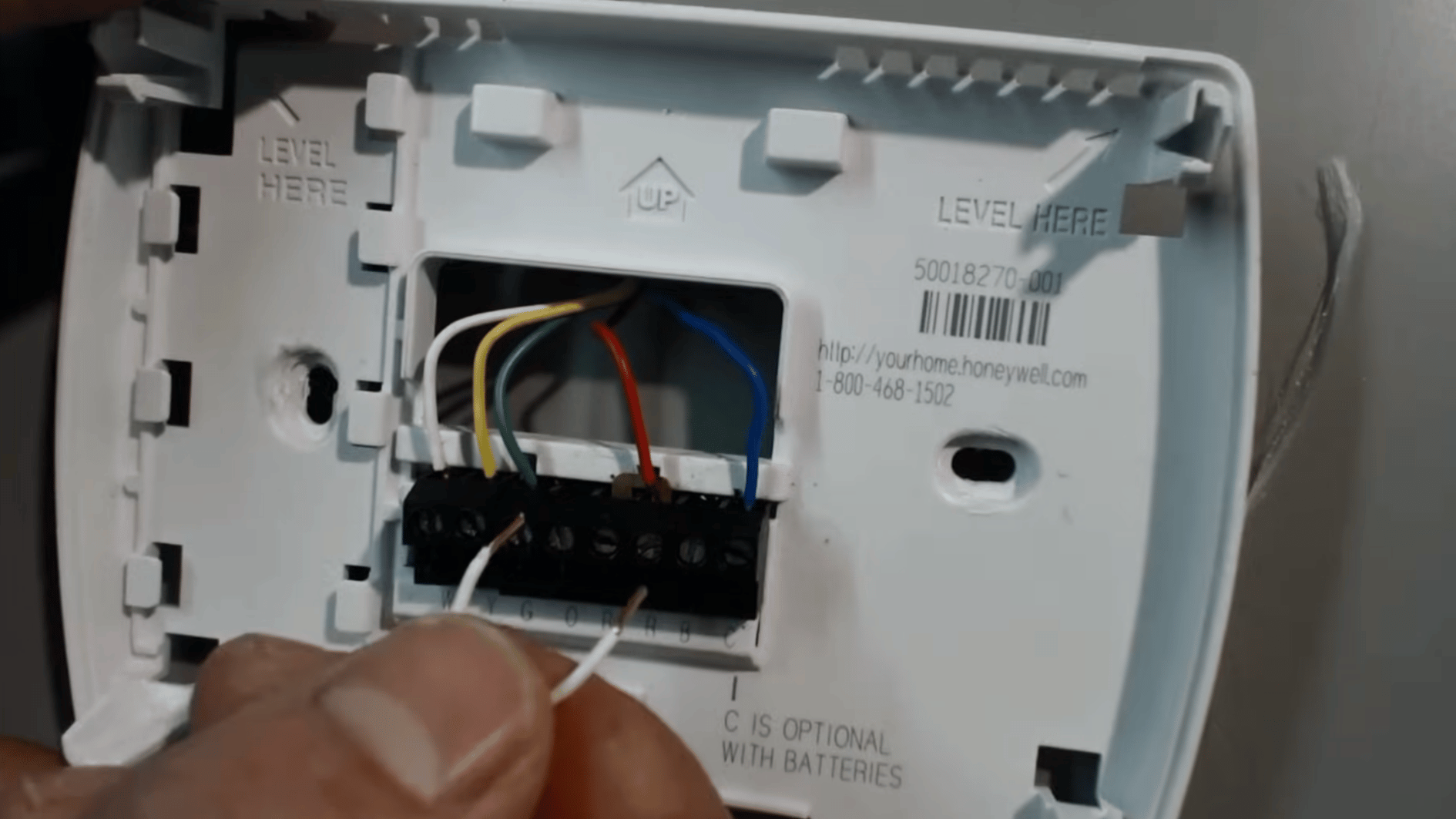

Step 3: Prepare a Jumper Wire

Use a short piece of thermostat wire and strip a small amount of insulation from both ends. This creates a temporary jumper for testing the thermostat circuit.

Keep the exposed sections short so the wire is easier to control around the terminal board.

• Use: Short thermostat wire
• Alternative: Small jumper lead
• Avoid: Leaving too much bare wire exposed

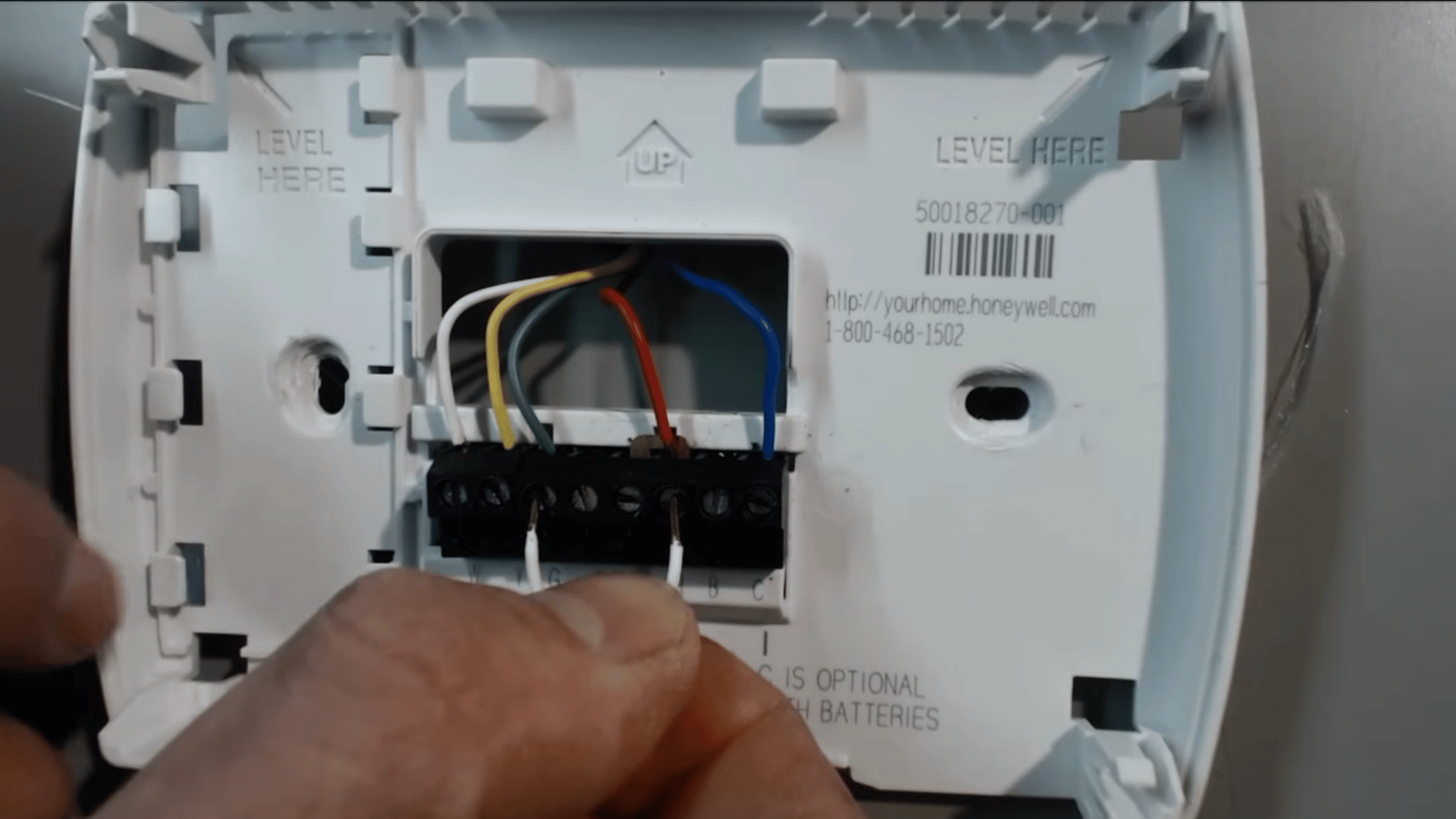

Step 4: Test the R and G Terminals

Place one end of the jumper on the R terminal and the other on G. This temporarily bypasses the thermostat’s normal fan control and sends the signal directly.

Watch for the blower response while the connection is made. If the fan starts, the HVAC system is responding to the signal.

• Expected Result: Blower starts
• Be Careful: Do not bridge other terminals
• No Response: The problem may be elsewhere in the system

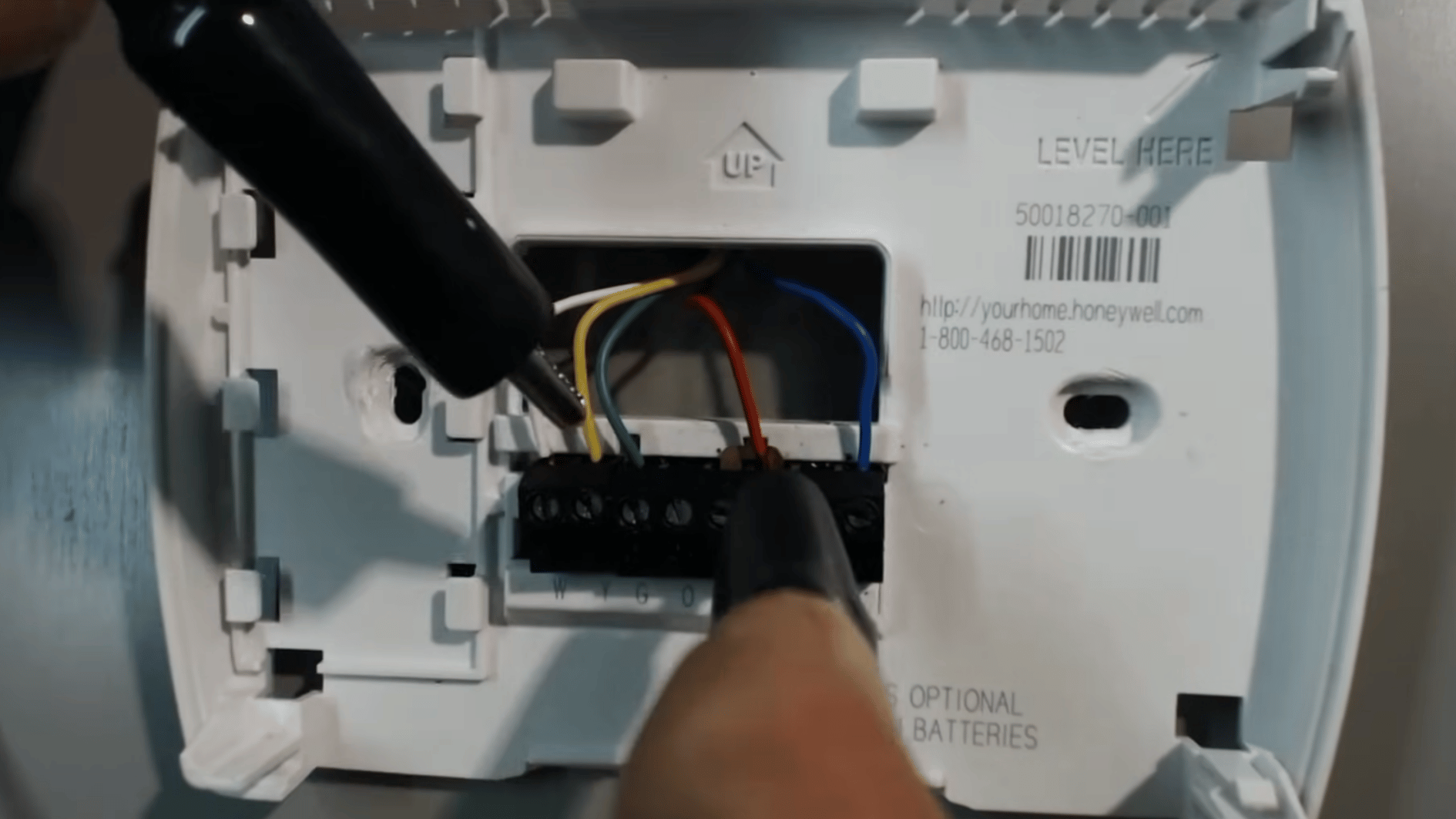

Step 5: Turn Off Power Before Removing Wires

If bypassing the thermostat base completely, shut off power to the furnace or air handler before disconnecting any wires. Confirm the equipment has stopped before loosening the terminal screws.

This provides a safer setup for removing the red and green wires for the next test.

• Shut Off: Furnace or air-handler power
• Remove Only: The wires needed for testing
• Leave Alone: Other thermostat connections

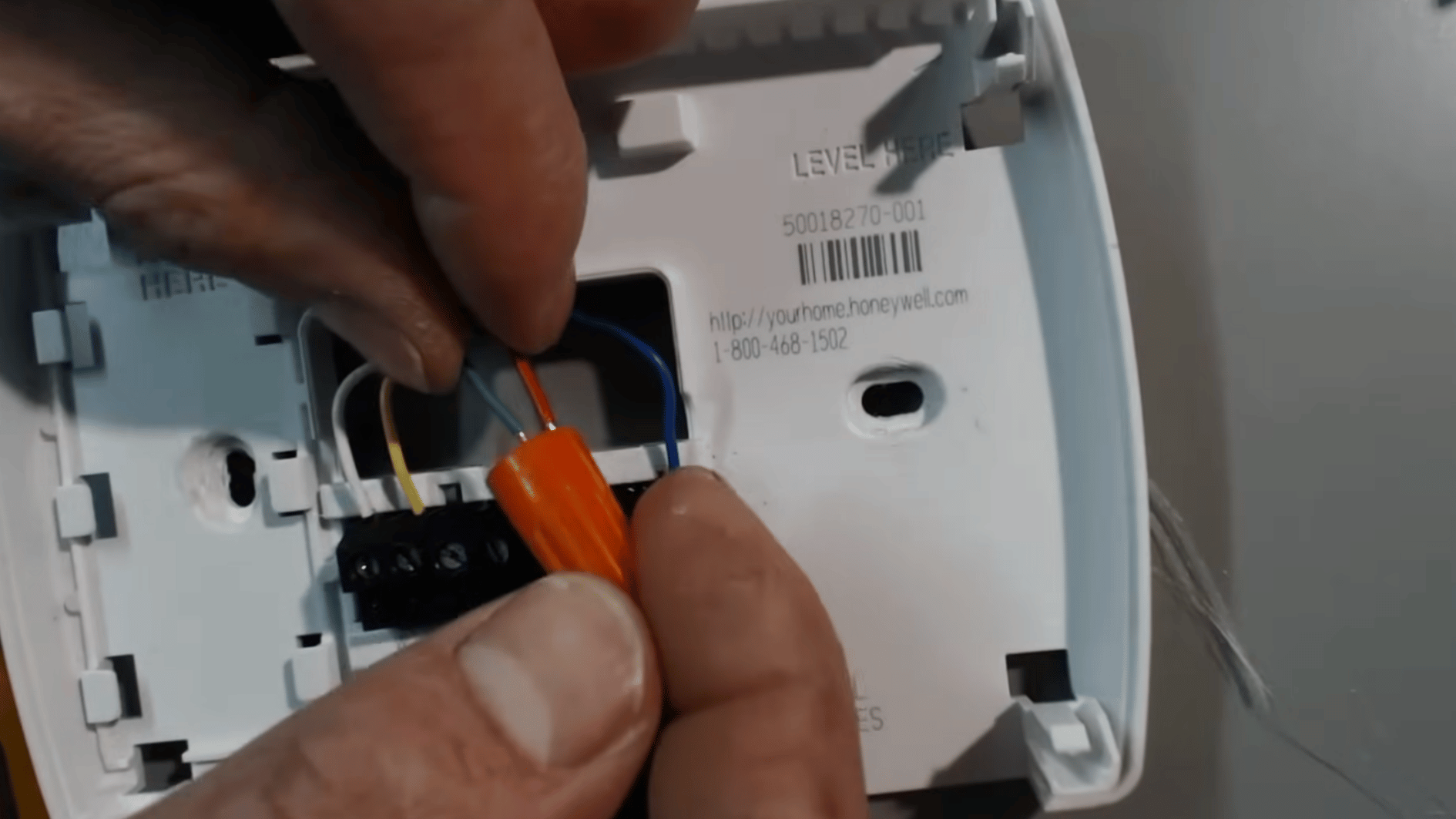

Step 6: Test the Fan

Remove the red and green wires from their terminals and connect them securely using a wire nut, alligator clips, or another suitable jumper connection. Keep the remaining wires separate.

Restore power and check the blower. If the fan runs, the thermostat is likely the problem. If it stays off, the issue may be with the furnace, air handler, wiring, or another HVAC component.

• Secure: Keep the connection from slipping apart
• Keep Clear: White, yellow, and other wires
• After Testing: Turn the power off before reconnecting everything

Note: Watch the original video for the full thermostat testing and wiring walkthrough.

What If the Thermostat Screen Is Still Blank?

A blank thermostat can happen for several reasons, and the cause is not always obvious at first. The table below helps narrow down what may be affecting the display.

Area to Check	Possible Issue	Next Step
Batteries	Drained or installed incorrectly	Replace with fresh ones, confirm polarity
Circuit breaker	HVAC breaker may have tripped	Switch fully OFF, then back ON
HVAC power switch	System switch may be off	Confirm furnace or air handler switch is ON
Furnace panel	Access panel not seated properly	Refit panel so safety switch engages
Thermostat base	Faceplate not making full contact	Remove and reseat securely on base
C-wire connection	May not be receiving steady power	Check connection if model uses a C-wire
Thermostat unit	Internal components may have failed	Consider replacement if display stays out

Thermostat Works, But HVAC Does Not

A working thermostat screen does not always mean the heating or cooling system is functioning properly. The thermostat may be powered on while another HVAC component is causing the issue.

First, check that the thermostat is set to Heat or Cool correctly and that the target temperature should trigger the system. Give the equipment a few minutes to respond.

If the thermostat shows that it is calling for heating or cooling but nothing starts, the problem may be with the furnace, air handler, condenser, heat pump, or control board.

At this point, replacing or adjusting the thermostat may not help. An HVAC technician can test the signal and identify where communication between the thermostat and system is failing.

Repairing vs. Replacing a Broken Thermostat

Not every thermostat problem means replacement – though if your unit is older, it may be worth considering an upgrade – modern smart home features have made newer thermostats considerably more reliable and easier to manage.

Situation	Repair Works When	Replace When
Power issues	Batteries or a secure connection restore it	It keeps losing power after basic checks
Display	The screen returns after fixing power	The display stays blank despite power
Temperature reading	A restart or repositioning fixes it	Readings remain noticeably inaccurate
Physical condition	No visible damage to the unit	Internal parts or housing appear damaged
System compatibility	The thermostat matches the HVAC setup	It doesn’t support the existing system
Recurring problems	The issue resolves and stays fixed	The same fault keeps coming back

When to Call an HVAC Technician?

Most thermostat issues are fixable with basic troubleshooting, but some problems are better left to a professional.

If the same breaker keeps tripping after a reset, that points to an electrical fault – not a thermostat issue. Burned terminals, melted wiring, or a burning smell near the furnace are immediate stop signs.

Don’t guess at disconnected wires or unclear terminals, and high-voltage or unfamiliar wiring usually means the system isn’t suited for DIY work.

If a brand-new thermostat still isn’t working after installation, the problem likely sits deeper in the wiring or system compatibility.

Dual-fuel and multi-stage systems, control board faults, and repeated power loss all fall into the same category – get a technician in before the problem gets worse.

Conclusion

Learning how to repair a broken thermostat is mostly about working through the right checks in the right order. If you rush past the basics, it’s easy to misread what’s actually wrong.

I find that most thermostat problems – blank screens, unresponsive systems, incorrect readings – trace back to something simple: a tripped breaker, a loose wire, or a setting that’s slightly off.

Work through each step carefully, and the cause usually becomes clear before you get too deep into the repair.

And when it doesn’t, that’s useful information too – it means the problem sits elsewhere in the system, and a technician is the right next call.

Frequently Asked Questions

How Long Does a Home Thermostat Usually Last?

Around 10 years or longer. Actual lifespan varies by model, usage, wiring condition, and overall HVAC setup.

Can a Faulty Thermostat Increase Energy Bills?

Yes. A thermostat that reads temperatures incorrectly or runs the HVAC system longer than needed can drive up heating or cooling costs.

Can a Thermostat Work Sometimes and Fail At Other Times?

Yes. Intermittent problems often come from loose connections, unstable power, aging components, or a failing thermostat.

Can the Location of a Thermostat Affect How It Works?

Yes. Direct sunlight, drafts, exterior walls, vents, or nearby heat sources can skew temperature readings and cause the HVAC system to run incorrectly.
