DIY Retaining Wall: Materials, Planning & Steps
Soil sliding down after every rain can quietly damage patios, driveways, and garden spaces. Many homeowners notice the problem only after repairs become expensive and repeated.
A well-built DIY retaining wall helps stop this movement and keeps outdoor areas stable and usable.
It also improves space use by creating level sections for gardens or seating. With the right steps, it becomes a long-lasting solution rather than a short-term fix.
This breakdown explains what a DIY retaining wall is, when it is needed, and how to build one correctly from start to finish.
What is a DIY Retaining Wall?
A DIY retaining wall is a homeowner-built structure that holds soil in place against gravity.
It resists two forces constantly working against it: lateral soil pressure pushing outward, and hydrostatic pressure that builds when rain-saturated soil gets heavier.
Most walls that fail are not brought down by a single catastrophic storm. They weaken quietly over months until a single wet season finishes them off.
| When Do You Need a Retaining Wall?
You need one when your yard is actively losing the battle against its own slope. The most common triggers:
|

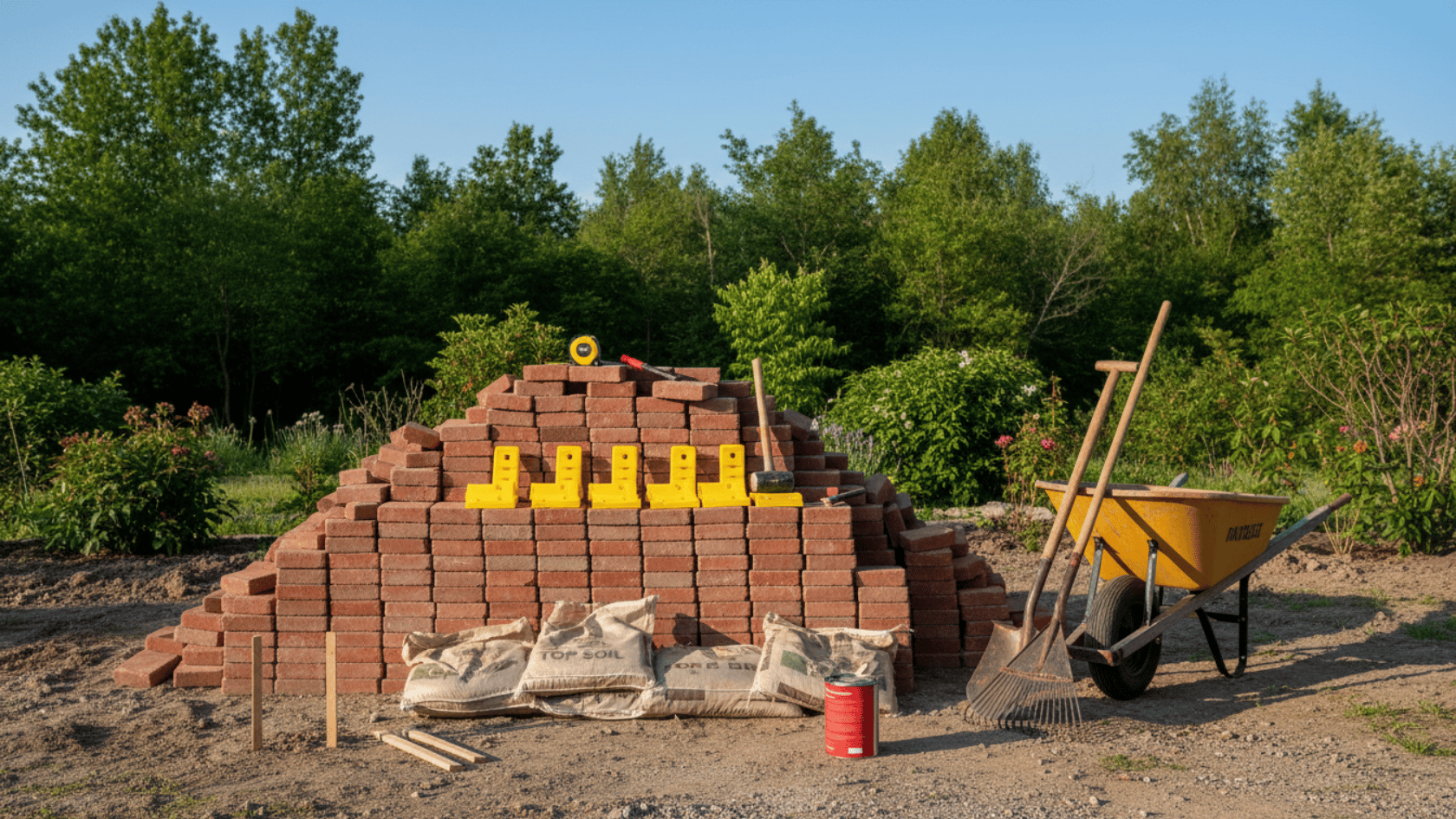

DIY Retaining Wall Required Materials
Most homeowners budget for blocks and forget everything else. Skipping any of the items listed below is the reason most DIY walls fail within a few seasons.
| Material | Purpose | Notes |
|---|---|---|
| Interlocking concrete blocks | Main wall structure | No mortar needed |
| Crushed gravel (3/4 inch) | Base and drainage zone | 6 in. base, 12 in. behind wall |
| Perforated drain pipe (4 inch) | Redirects water from the wall base | Along a footing course |
| Landscape fabric | Separates gravel from backfill | Prevents clogging |
| Cap blocks and construction adhesive | Finish and seal the top course | Final course only |
Sort out planning before anything gets ordered. Mark your layout with stakes, a string line, and spray paint. Calculate the block count by dividing the wall face area by the block face area, then adding 10% for overage.
Note which direction water flows on site, call 811 at least 3 to 4 business days before digging, and confirm permit requirements with your local building department.
Step-by-Step Guide to Building a DIY Retaining Wall
Building a retaining wall comes down to these simple steps, done in the right order. Rush any one of them, and the problem shows up immediately.
Step 1: Plan Your Layout and Mark the Site
Run a string line between stakes along the wall face and trace the trench line with spray paint. For curved walls, use a garden hose to define the arc first.
Calculate your block count, confirm water flow direction on site, and check your block manufacturer’s setback requirements before breaking ground.
Pro tip: Double-check underground utilities before marking. A small mistake here can stop the entire project.
Step 2: Dig the Trench and Build the Foundation
Dig a 6-inch-deep trench for the gravel base and first-course placement. Compact subsoil using a plate compactor before adding base material.
Lay 6 inches of crushed gravel in 2-inch lifts and compact each layer. Ensure the base is level since any unevenness carries through all courses.
Step 3: Lay the First Course of Blocks
Set the first block on compacted gravel and check the level in both directions. Adjust using a rubber mallet and recheck level before moving on.
Continue checking the level after placing each block in the row. This course sets alignment, and small errors will grow with each row.
Pro tip: Use a long straight edge across multiple blocks to catch hidden dips early.

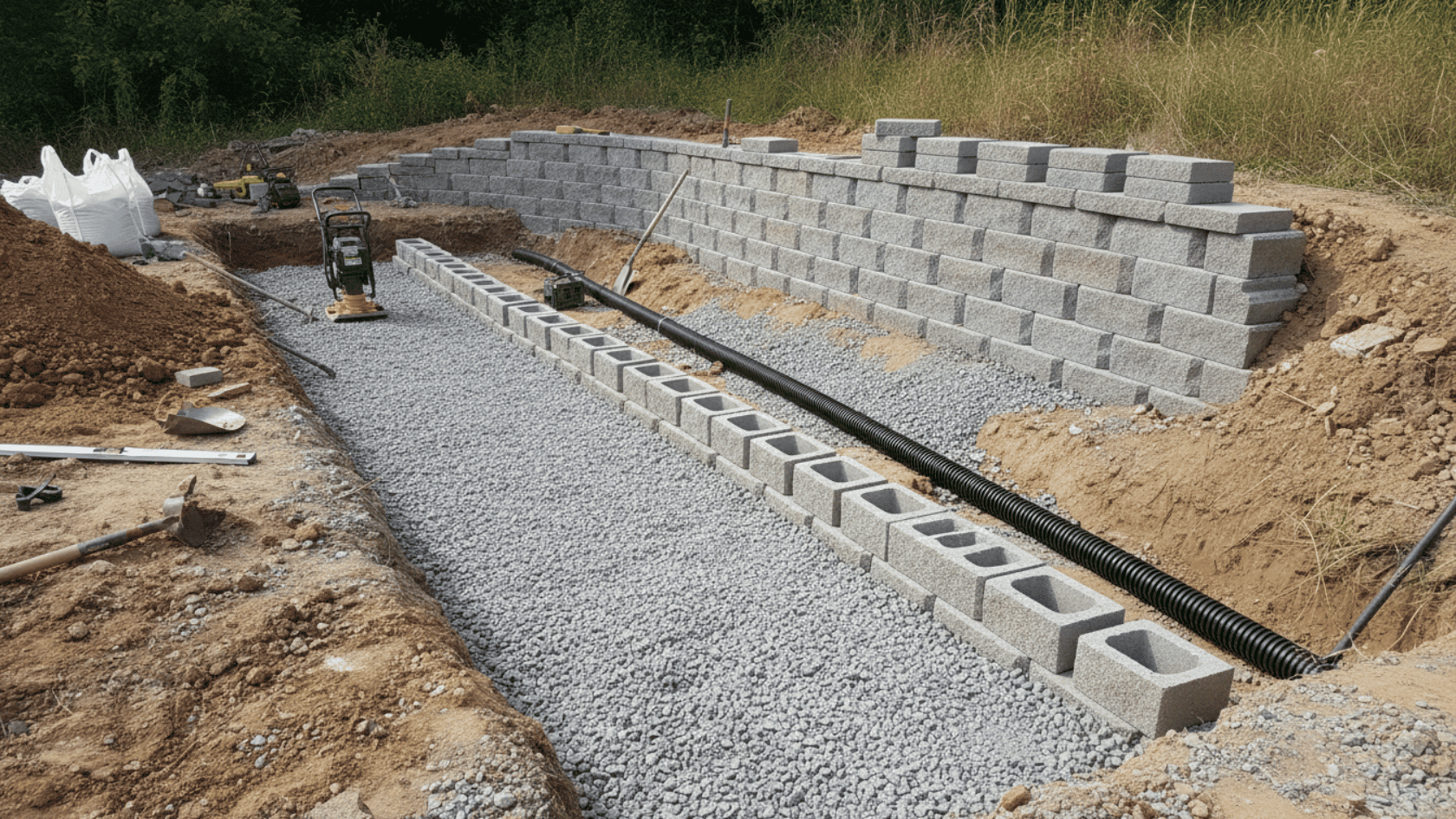

Step 4: Stack Rows, Install Drainage, and Backfill
Stack each row in a staggered brick pattern, keeping each course set back slightly into the slope.
After every 1 to 2 rows, add 12 inches of drainage aggregate behind the wall, with a perforated drain pipe at the base, wrapped in landscape fabric. Backfill in compacted lifts, never all at once.
Step 5: Finish, Cap, and Seal the Wall
Set cap blocks on the final course and secure them with construction adhesive on top of the last row.
Finish backfilling behind the wall and compact the surface evenly. The cap locks the system and blocks water from entering the cores above.
A properly built wall needs little attention, while a poorly sequenced one keeps needing fixes.
Note: Let the adhesive cure fully before applying pressure or loading the wall top.

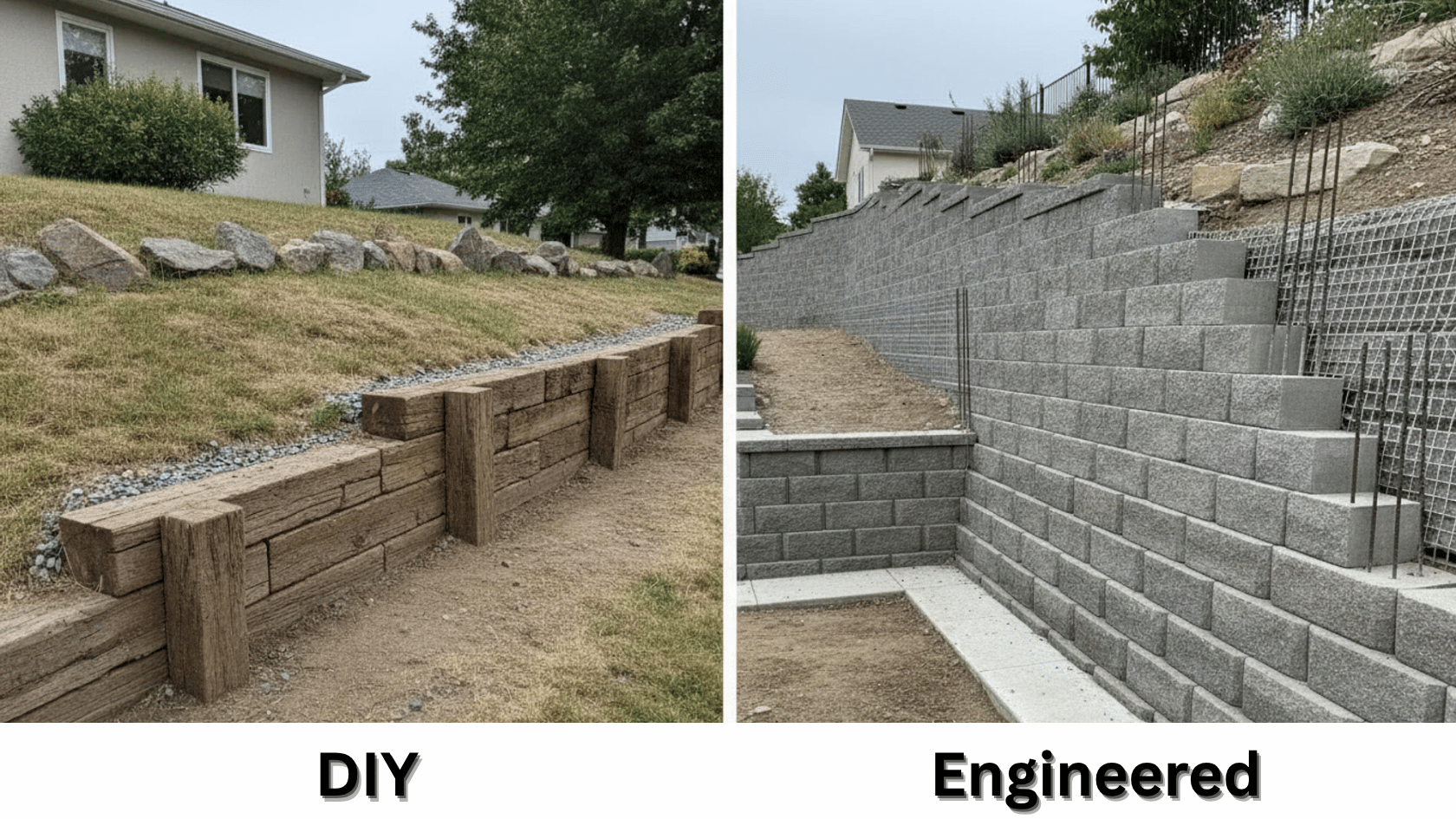

DIY vs. Engineered Wall Limits
A quick comparison shows how DIY retaining walls differ from engineered walls in strength, design needs, and safe usage limits.
| Factor | DIY Retaining Wall | Engineered Retaining Wall |
|---|---|---|
| Height limit | Works best under 3–4 feet | Designed for any height, including tall walls |
| Soil pressure handling | Limited resistance depends on the basic block system | Calculated for soil load and pressure conditions |
| Location suitability | Flat, stable ground with no heavy loads | Slopes, driveways, foundations, and high-load areas |
| Design requirement | Simple planning and standard installation steps | Requires engineering design and calculations |
| Permit need | Often not required for low-height walls | Usually required based on height and site rules |
| Safety level | Suitable for light-duty use only | Built for long-term structural safety |
DIY Retaining Wall Cost Breakdown
A retaining wall cost breakdown shows where your money goes before starting the project. Blocks usually cost $3–$8 per sq. ft., while gravel and drainage add about $2–$5 per sq. ft.
Small DIY walls often range from $15–$30 per sq. ft., while taller or reinforced walls can reach $40–$60 per sq. ft.
Additional costs such as tools, site prep, and soil removal can also increase the total. Planning these numbers early helps avoid surprises, keeps the project on budget, and ensures a strong, lasting wall.
Note: Costs may vary based on location, material quality, and site conditions.
Common Mistakes when Installing Retaining Wall Blocks
Common mistakes when installing retaining wall blocks often lead to leaning, bulging, or early failure.
Most issues come from poor base work and ignoring drainage.
- Skipping utility checks before digging and risking damage to underground lines
- Incorrect trench depth or width that weakens the wall foundation
- Not compacting the gravel base properly, leading to settlement and shifting
- Ignoring level alignment on the first course, causing full-wall misalignment
- Using soil instead of drainage gravel behind the wall, increasing water pressure
- Missing proper drainage pipe and landscape fabric, allowing water buildup
- Not staggering blocks or exceeding height limits without reinforcement or permits
DIY Retaining Wall Maintenance and Long-Term Care
Building the wall is only half the job. Years two and three are when small shortcuts start showing up, and catching them early costs far less than rebuilding.
After every heavy rain, walk the wall and confirm water is draining out where it should. Every fall, clear the drain pipe of leaves and debris before the wet season hits.
Pooling behind the wall means the drain pipe is blocked or was never installed correctly.
Twice a year, check for these warning signs:
- Blocks that have shifted or separated at joints
- Any section bulging or leaning forward
- Cap blocks that have loosened or lifted
Call a professional if the wall is visibly leaning, showing horizontal cracks across multiple blocks, or if soil is pushing over the top.
Conclusion
A DIY retaining wall offers a practical way to control soil movement, protect outdoor spaces, and create usable landscape areas when built with the right materials and proper steps.
Success depends on strong base preparation, correct drainage setup, and careful stacking, since small errors can lead to long-term structural issues.
When these basics are followed, the wall can perform reliably for years with minimal maintenance and prevent costly erosion damage.
Plan carefully, build step by step, and focus on drainage first for a result that lasts.
Start your DIY retaining wall project today and build with confidence using the right method from the start.
Leave a comment below and share your experience or questions.
Frequently Asked Questions
What Is the Single Biggest Enemy of Retaining Walls?
Water is the biggest enemy because it builds pressure behind the wall over time. Poor drainage leads to this pressure, causing slow failure.
What Is the Cheapest Way to Make a Retaining Wall?
Dry-stacked concrete blocks with gravel backfill are the cheapest DIY method. It reduces cost but still needs a proper base and drainage.
What Is the 1: 3 Rule for Retaining Walls?
The 1:3 rule means the base should be at least 3 times wider than the wall height. It improves stability and helps prevent tipping or sliding.
