Upgrading Surfaces with Concrete Overlays
It’s alright to feel low when your driveway or patio looks cracked, stained, or just plain tired. I’ve seen how frustrating it can be to live with concrete that drags down the rest of your home’s look.
This guide is here to help you change that, without tearing everything out. You’ll find clear steps, helpful examples, and real, concrete before-and-after results that show what’s possible.
By the end, you’ll know how to bring new life to those worn-out surfaces with less time, effort, and cost than you might think.
You’ll also receive tips on selecting the ideal overlay type and maintaining its appearance over time. If it’s for your driveway, patio, or garage, there’s a practical fix waiting for you.
What is a Concrete Overlay?
A concrete overlay is a thin layer of cement-based or polymer-modified material placed over existing concrete to refresh its look and surface quality.
It’s often used when the original slab is still structurally sound but has visible damage, such as cracks, discoloration, or rough spots.
Overlays help restore surface strength and appearance without needing a full tear-out or costly replacement. Many homeowners choose overlays to update patios, driveways, or walkways with added texture or color.
It’s a reliable option to quickly and affordably improve outdoor areas while extending the life of the original concrete.
Where It Works Best
Concrete overlays repair worn surfaces, improving both their appearance and performance. They’re ideal for areas needing a fresh, durable finish.
- Patios: Overlays can refresh an old patio by covering up cracks, stains, and surface wear. They also offer the chance to add texture or patterns, making your outdoor space more inviting and slip-resistant.
- Driveways: These surfaces face heavy use from cars and weather. Overlays enhance strength, prevent further cracking, and can improve traction, making the driveway safer in wet conditions.
- Walkways: Uneven or chipped walkways can be a tripping hazard. A concrete overlay smooths out the surface, restores a clean appearance, and provides a better grip for foot traffic.
- Garage Floors: Stains from oil, tire marks, and general grime can make garages look neglected. Overlays conceal these flaws while providing a surface that’s stronger, easier to clean, and maintain.

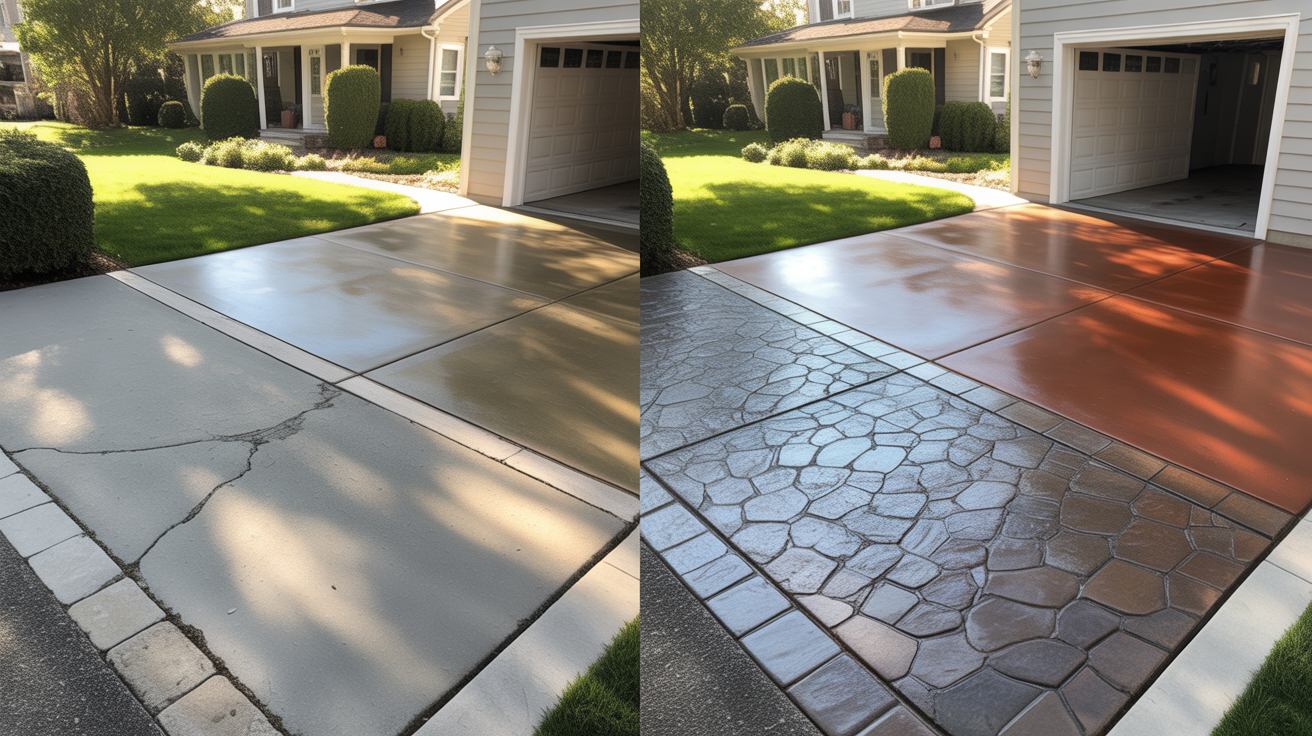

Concrete Overlay: Before and After
Concrete overlays can fix damage and give outdoor areas a clean, refreshed look. The table below highlights common problem spots and how different overlay types solve them.
| Area | Before Overlay | After Overlay | Overlay Type |
|---|---|---|---|
| Driveway | Cracked, stained, dull surface | Smooth, clean, slip-resistant finish | Stamped concrete |
| Patio | Chipped edges, uneven color | Stone-look surface with added texture | Decorative stamped |
| Walkway | Faded concrete with surface wear | Consistent tone and smooth path | Stained overlay |
| Garage Floor | Oil stains, scuffs, and visible cracks | Stronger surface, easier to clean | Epoxy overlay |
| Front Entrance | Weathered look with no curb appeal | Fresh surface with pattern design | Stamped and stained mix |
Overlay Types and Finishes
Concrete overlays are available in various types and styles to suit different surfaces and design needs. Each option offers its look, texture, and level of durability.
Stamped Concrete Overlay
Stamped overlays are designed to resemble other materials, such as brick, stone, or slate. A thin layer of concrete is applied, then pressed with textured mats before it fully sets.
These mats create patterns that mimic natural materials, giving you a decorative finish without the cost of real stonework. You can also tint the overlay to get a specific shade.
This type of overlay works well for patios, driveways, and walkways where both visual appeal and surface strength are important.
Stained and Colored Finishes
Stained overlays add color to concrete surfaces while bringing out their natural texture. Acid-based stains produce organic tones, while water-based stains offer more consistent results.
Both types soak into the surface, so the color lasts without peeling. You can choose from a wide range of shades like browns, grays, and light blues.
This option works well when you want a bold, long-lasting finish without adding extra layers or materials. It’s a simple way to refresh surfaces with color and depth.
Epoxy and Pebble Overlays
Epoxy and pebble overlays are often used in areas that require increased durability and traction. Epoxy is a resin coating applied over concrete for a strong, smooth finish that resists stains.
Pebble overlays mix small stones with a binder, forming a slip-resistant surface that withstands the warm, sunny climates of California.
These overlays are ideal for driveways, pool decks, and garages where you want improved functionality without compromising aesthetics.
Step-by-Step Breakdown
Applying a concrete overlay takes careful preparation and several key steps to get a strong, long-lasting finish. Each stage plays a crucial role in the overall outcome.
Step 1: Surface Prep and Taping
Make sure the tape seals well and sits on top edges—not in joints—for easy removal between coats.
Step 2: Mixing the Overlay
The mix should be smooth and runny with no lumps. Always rinse your mixing paddle between batches to avoid contamination.

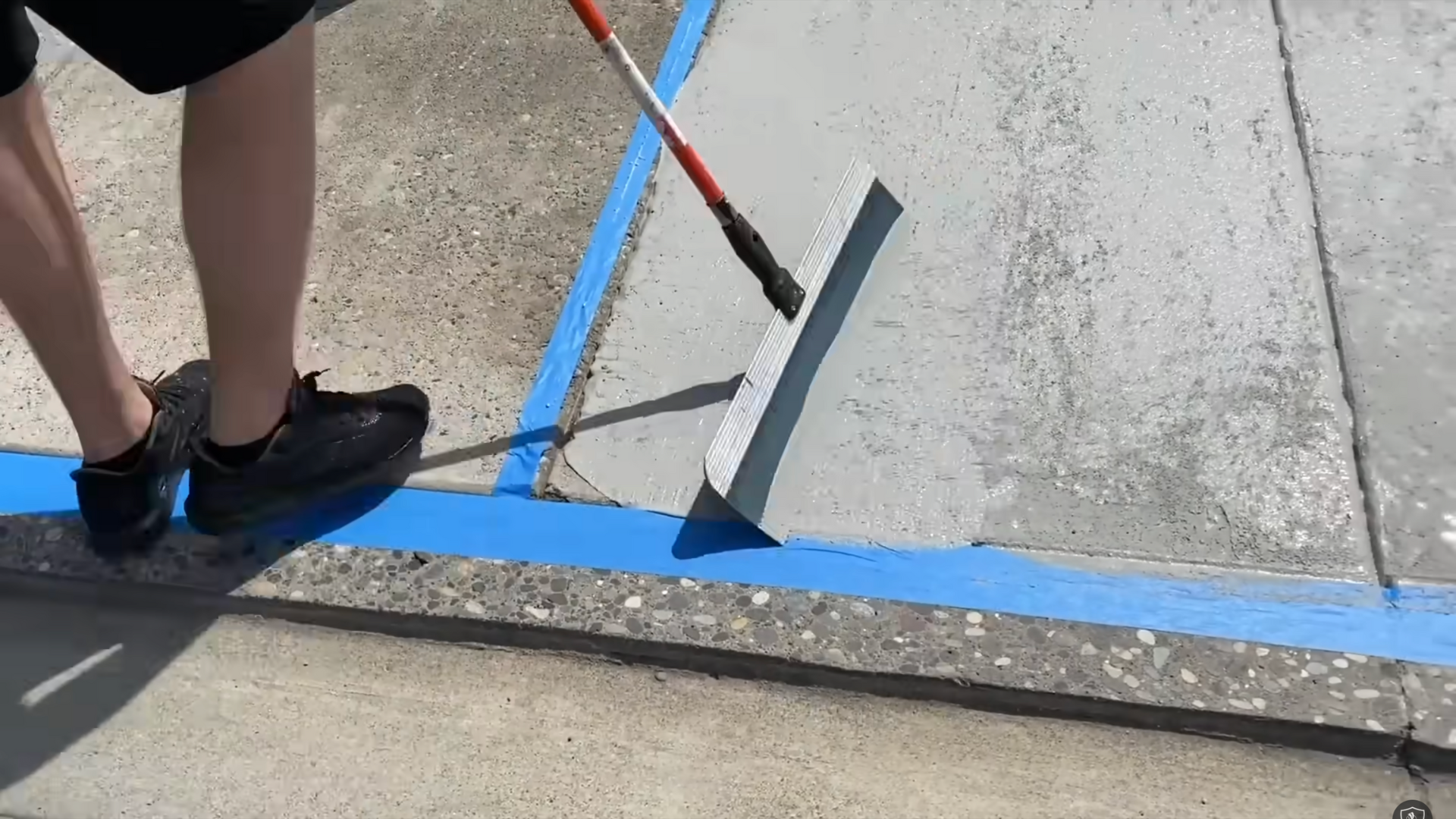

Step 3: Applying the Coats
Apply three coats: a scratch coat with a trowel, a leveling coat with a squeegee, and a final broom coat for texture.
Keep the surface well-hydrated throughout to prevent premature drying and ensure smooth application. Let each coat dry before continuing.
Step 4: Cutting Control Joints
This allows the surface to expand and contract without cracking during temperature changes. Always wear protective gear and use a blower to keep dust away from the work area.

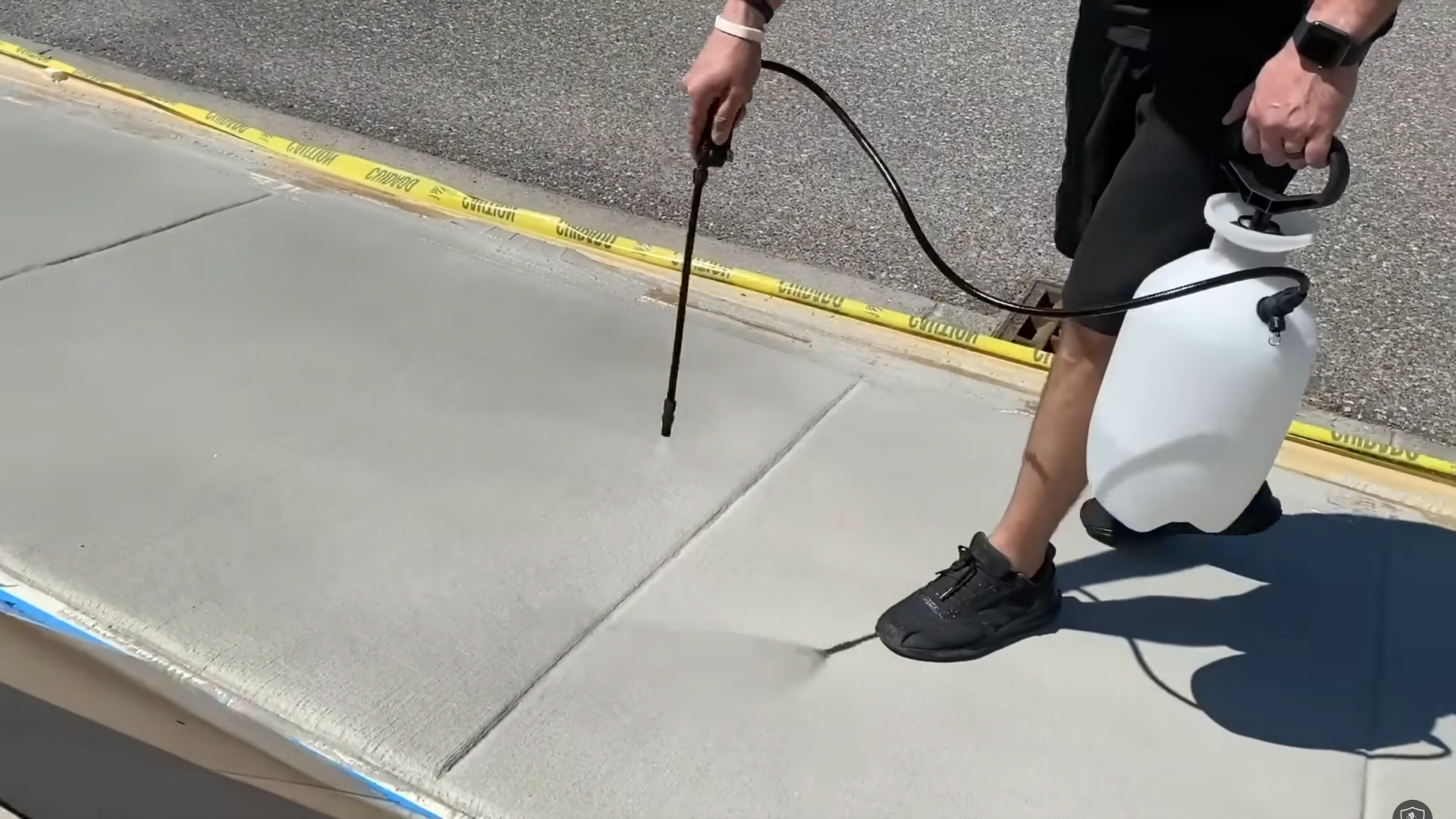

Step 5: Sealing the Surface
Mix the single-component sealer and pour it into a pump-up sprayer using a strainer to avoid clogs. Apply two to three light coats in overlapping, circular motions.
Wait around 30 minutes between coats and avoid walking on the surface until sealing is done. Let it cure for 24–48 hours before use, with full hardness reached after seven days.
Durability and Maintenance
Concrete overlays can last for years when properly installed and maintained. Knowing what affects their lifespan helps you maximize the benefits of your investment.
How Long Does an Overlay Last?
A well-installed concrete overlay can last anywhere from 7 to 15 years, sometimes longer, with proper care.
Regular maintenance, like sealing every few years and cleaning, can help prevent damage from moisture, stains, and wear.
Heavy-use areas may need more frequent attention, but simple upkeep goes a long way in keeping the surface strong and looking clean.
Weather and Usage Factors
Climate and usage both play a significant role in determining the lifespan of an overlay. In hot areas, the surface can dry faster and develop surface cracks if not sealed well.
Freeze-thaw cycles can cause the overlay to expand and contract, which leads to chipping or peeling if moisture gets underneath.
High-traffic areas, such as driveways or garage floors, may also wear out faster due to heavy loads. Choosing the right overlay type and maintaining basic care helps reduce these effects.
Pros and Cons of Concrete Overlays
Concrete overlays offer a straightforward method to enhance surface appearance and performance, but like any option, they have strengths and limitations that depend on the condition of the base.
Benefits
Concrete overlays offer several advantages for improving old surfaces without major construction. They’re practical for homeowners wanting a fast, affordable update.
- Fast Surface Update: Overlays can quickly enhance the appearance and texture of concrete without requiring full replacement.
- Lower Cost: They’re generally more affordable than tearing out and pouring new concrete.
- Design Options: Select from a range of colors, textures, and patterns to suit your unique personal style.
- Slip Resistance: Many overlays improve traction, making surfaces safer when wet.
- Extended Lifespan: Protects the original slab and adds extra years of usability.
- Less Disruption: Installation is quicker and less invasive than other renovation methods.
Drawbacks
Despite their benefits, overlays have limitations that depend on the surface condition and the quality of their installation. Skipping proper prep can lead to short-term results.
- Not for Unstable Surfaces: Won’t fix serious damage like crumbling or shifting concrete.
- Peeling Risk: If not properly prepared or applied, the overlay may peel, flake, or crack.
- Weather Sensitivity: Moisture or extreme temperatures during installation can affect results.
- Limited Thickness: Overlays are thin and may not withstand heavy pressure or weight.
- Maintenance Needed: May require sealing every few years to maintain protection and appearance.
Conclusion
Now you’ve seen what a fresh overlay can do for tired concrete, cleaner lines, better color, and fewer surface problems.
It’s not just about looks. It’s about making your outdoor areas safer, easier to clean, and more enjoyable every day.
If you’ve got the right surface underneath, a simple overlay might be all you need. I hope this gave you a clear idea of what to expect from a concrete overlay before and after.
Stick around and find more guides if you’re ready to tackle your next home project.
