French Drain Basement System: Step-by-Step Guide
A wet basement isn’t just annoying; it can wreck your peace of mind. I know how frustrating it is to see puddles near the wall or smell that damp, musty air.
If you’ve been dealing with water creeping into your home, you’re not alone. That’s exactly why you’re here.
In this post, I’ll walk you through everything you need to know about a French drain basement system.
You’ll learn how it works, the difference between interior and exterior drains, what it costs, and what it takes to install one.
I’ll also help you figure out if it’s something you can do yourself or if calling in a pro makes more sense. Let’s break it all down together.
What is a French Drain Basement and How Does It Work?
A French drain is a simple water management system that redirects water away from problem areas. The system uses gravity to move water through a buried perforated pipe surrounded by gravel.
The basic components include:
- Perforated pipe: Usually 4-inch diameter PVC with holes that collect water
- Gravel bed: Surrounds the pipe and allows water to flow freely
- Trench: Houses the entire system at the proper slope
- Filter fabric: Prevents soil from clogging the gravel and pipe
Water seeps into the gravel, enters the pipe through the holes, and flows to a discharge point. The system works 24/7 without electricity or moving parts.
The key is proper slope, typically 1 inch of drop for every 8 feet of pipe. This gentle grade keeps water moving toward the exit point.
Interior vs. Exterior French Drains
Both systems solve water problems, but they work in different ways and situations.
| Feature | Interior French Drain | Exterior French Drain |
|---|---|---|
| Pros |
Lower installation cost No landscaping disruption Works year-round Easier maintenance access |
Prevents water from reaching the foundation Long-term foundation protection No interior concrete work Often more effective overall |
| Cons |
Requires breaking concrete Dust and debris during installation Water reaches the foundation first May need a sump pump |
Higher installation cost Major excavation needed Disrupts landscaping Weather limits when it can be installed |
| Best for |
Existing basements with seepage Cold climates No access for outside digging |
New construction Serious foundation concerns Where exterior access is available |
French Drain Inside Basement Step-By-Step Installation Process
Installing a French drain below the basement floor helps manage groundwater and prevent seepage by directing water into a controlled drainage system.
Tools and Materials Needed
- Concrete saw or jackhammer
- Shovel and excavation tools
- 4-inch perforated PVC pipe
- Gravel (3/4 inch clean stone)
- Filter fabric
- Sump pump (if needed)
- Concrete mix for patching

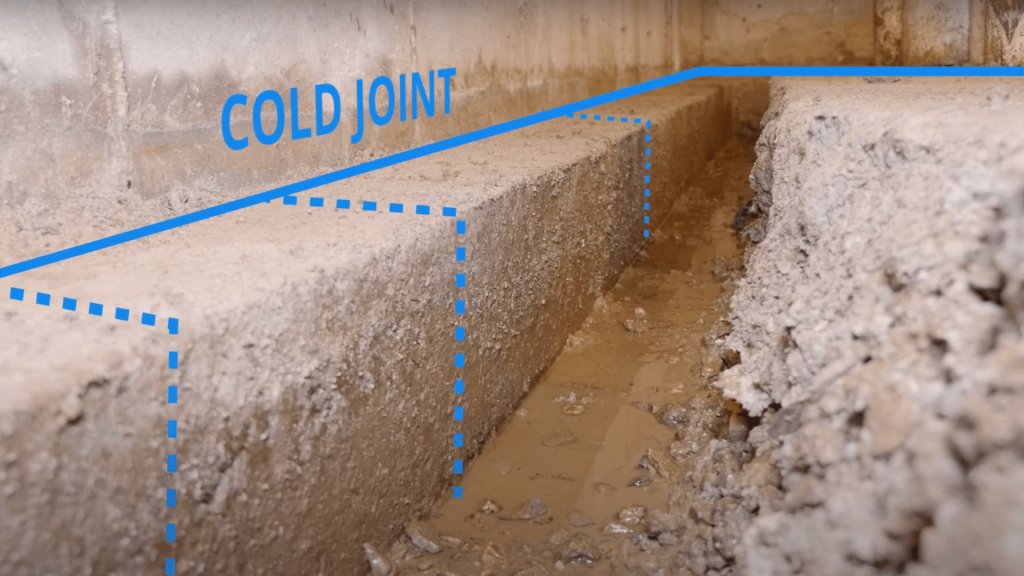

Step 1: Identify the Cold Joint and Water Entry Points
Begin by understanding how water enters your basement. The main source is the cold joint, where the foundation wall sits on top of the footing.
This joint is formed when the footing (dry cement) is poured first, followed by the wall (wet cement) later.
The seam between them remains vulnerable. During heavy rain or rising groundwater, water seeps through this joint and collects under the basement floor.
Spotting signs like trench flooding or seepage at the wall-floor junction confirms the issue.

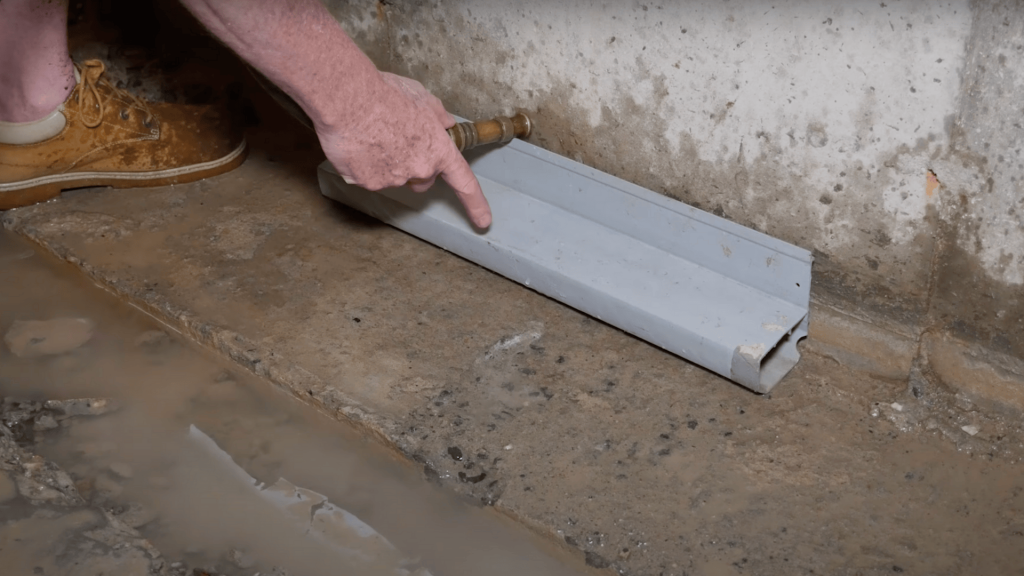

Step 2: Excavate Below the Floor and Set Drain Depth
Remove the concrete slab and dig a trench that reaches from the top of the footing down to the bottom, roughly 12 to 14 inches deep.
This depth is referred to as the “magic zone”, where water naturally accumulates. Keeping your drainage within this depth ensures the water is captured before it rises to floor level.
The trench should follow a consistent slope toward the sump pump location to enable passive water movement.

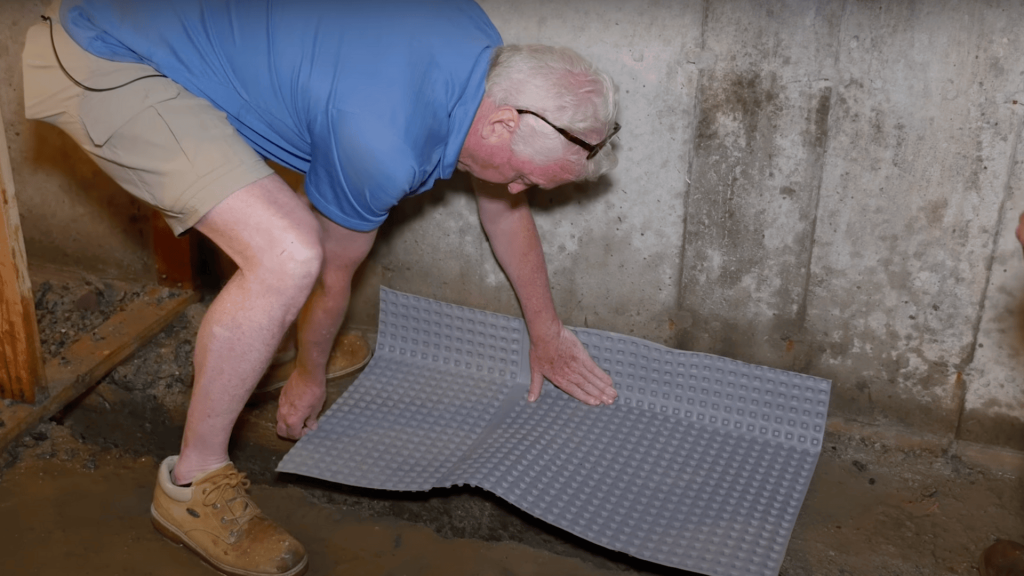

Step 3: Customize the Drain Board and Flow Channel
Use a flexible drain board or flow channel and cut it to fit the exact shape of the footing and wall junction.
This customized piece sits right at the cold joint and channels water down into the trench below.
The board should bend securely to match the footing edge and wall face. This allows water traveling along the cold joint to be intercepted early and funneled efficiently to the drain pipe below.

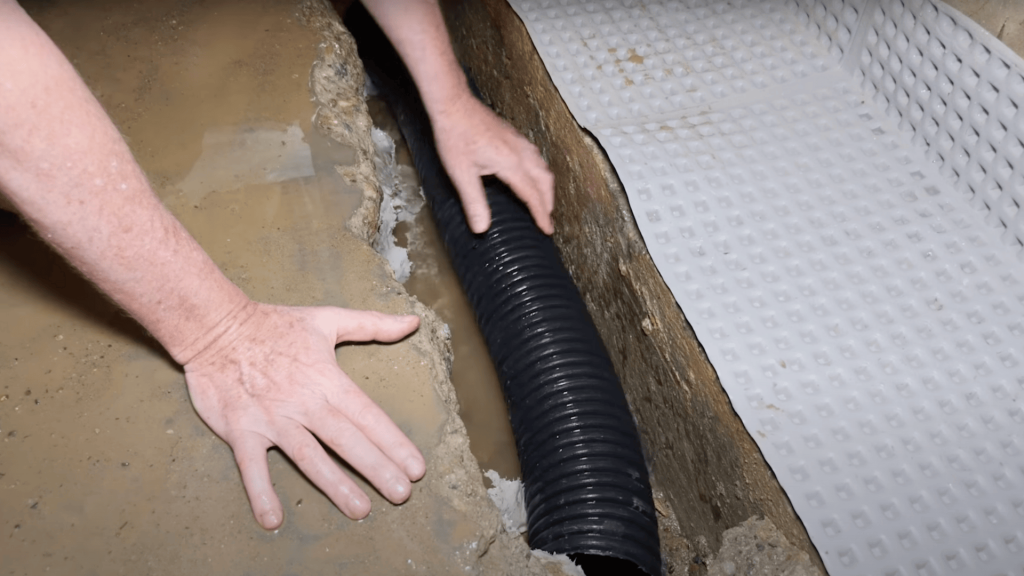

Step 4: Install Pipe and Stone with Proper Pitch
Lay a perforated corrugated pipe at the bottom of the trench, ensuring it follows a consistent slope toward the sump pit.
Surround the pipe with a large volume of ¾-inch clean stone to promote water flow and natural self-flushing action.
The stone helps direct water into the pipe and prevents clogging. This setup reduces the need for annual maintenance and avoids bacterial buildup like iron ochre, which can occur in flat or poorly pitched systems.

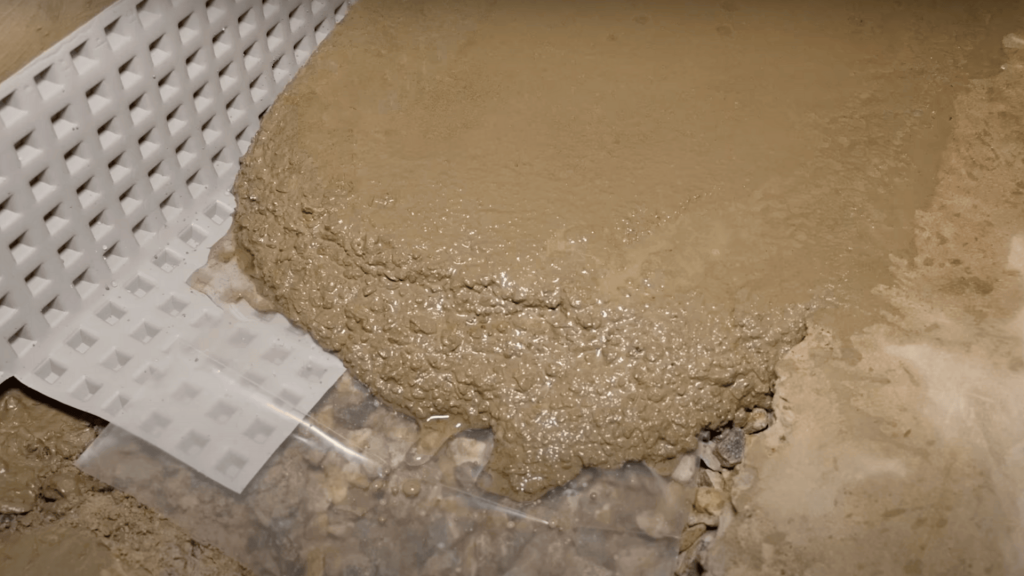

Step 5: Backfill and Finish with Concrete
Connect the drain pipe to a heavy-duty sump pump installed in a basin at the trench’s lowest point.
Once the drainage system is fully placed, backfill around the pipe with more stone, then pour concrete to restore the basement floor to its original level.
The filled trench and drain board form a permanent drainage path that moves water away before it can rise into the living space, keeping the basement dry long-term.
Here is the YouTube video for explanation:
French Drain with a Sump Pump
Interior French drains often require sump pump integration, especially in areas with high water tables or poor natural drainage.
When It’s Required
You need a sump pump system when:
- Natural drainage to daylight isn’t possible
- Local codes require pumped discharge
- Water table is higher than your drain system
- Basement is below the level of storm sewers
System Integration
The sump basin becomes the collection point for your French drain system. Size the basin appropriately – typically 18-24 inches in diameter for residential use.
Install the drain pipe so it empties into the basin above the pump intake. This prevents backflow and allows proper pump operation.
Choose a pump with adequate capacity for your situation. Most residential systems need pumps that handle 2,500-3,500 gallons per hour.
Install the discharge pipe to carry water away from your foundation. The discharge point should be at least 10 feet from the house.
Battery Backup Advice
Power outages often coincide with heavy storms when you need your pump most. Battery backup systems provide critical protection.
Look for backup systems that provide 6-8 hours of operation time. This covers most typical outage periods during storms.
Test the backup system monthly and replace batteries according to the manufacturer’s recommendations. Keep maintenance records for warranty purposes.
Cost Breakdown
French drain costs vary significantly based on system type, home size, and local conditions.
| Category | Interior French Drain | Exterior French Drain |
|---|---|---|
| Perforated pipe & fittings | $200–400 | $300–600 |
| Gravel | $300–500 (10–15 yards) | $500–800 (15–25 yards) |
| Filter fabric | $100–150 | $150–250 |
| Concrete patching | $150–300 | Not applicable |
| Sump pump system | $800–1,500 | Optional; not always included |
| Waterproofing materials | Not applicable | $400–800 |
| Excavation equipment | Not applicable | $500–800 |
| Labor (professional) | $3,000–6,000 | $5,000–12,000 |
| Total estimated cost | $4,500–8,500 | $6,500–15,000 |
Cost Variables
- Soil type: Rocky or clay-heavy soils increase excavation time and difficulty.
- Home size: Larger homes need more materials and linear drain length.
- Accessibility: Tight spaces, finished interiors, or complex landscaping add labor time.
- Local codes: Permit requirements, inspections, or approved materials may increase cost.
DIY vs. Hiring a Pro
Installing a French drain in your basement can be a major undertaking. While many homeowners consider doing it themselves to save money, it’s important to weigh the trade-offs.
DIY installation offers flexibility and lower costs, but also comes with risk. Professional installation ensures code compliance and long-term reliability, though it typically costs more.
Your decision should depend on your comfort with excavation, drainage design, tool use, and your local permitting requirements.
| Factor | DIY Installation | Professional Installation |
|---|---|---|
| Cost | Saves 50–70% on labor | Higher upfront cost |
| Skill Requirement | Requires intermediate to advanced DIY skills | No homeowner experience needed |
| Time Commitment | Several weekends or more | Completed in a few days |
| Tools & Equipment | Must rent or purchase tools (e.g., concrete saw, trench tools) | The contractor provides all necessary equipment |
| Installation Quality | May vary depending on skill level | Professionally installed with correct slope and layout |
| Permits & Codes | May need to research and obtain permits | The contractor ensures code compliance |
| Risk of Mistakes | High – can lead to system failure or water damage | Low – backed by experience and warranties |
| Peace of Mind | Depends on personal confidence | Often includes warranties and insurance coverage |
Maintenance and Troubleshooting
Regular maintenance keeps your French drain system working properly for decades.
Signs of System Problems
- Slow drainage: in the basement or around the foundation indicates potential clogs or slope issues.
- Water backup: During heavy rains, suggests insufficient capacity or blocked discharge points.
- Musty odors: in the basement may indicate water penetration despite the drain system.
- Visible water damage: such as staining or efflorescence, shows the system isn’t controlling moisture properly.
- Sump pump cycling: frequently during dry periods, indicates potential system leaks or groundwater issues.
Inspection and Maintenance
Check discharge points monthly for clogs or damage. Clear any debris blocking water flow.
Test sump pump operation quarterly by pouring water into the basin. The pump should start automatically and discharge properly.
Inspect visible portions of the system annually. Look for signs of settling, damage, or vegetation growth.
Have professional cleaning done every 3-5 years for interior systems, or when you notice reduced performance.
Document maintenance activities and keep records of any repairs or upgrades made to the system.
Maintenance Schedule
- Monthly: Check discharge points and clear debris
- Quarterly: Test sump pump operation and clean the basin
- Annually: Inspect system components and grade around discharge areas
- Every 3-5 years: Professional cleaning and performance evaluation
- As needed: Address any signs of problems immediately
Common Problems and Fixes
- Pipe clogging: from debris or roots, fixed with jet cleaning or added cleanouts; prevented with proper filter fabric and smart planting
- Improper slope: from settling or poor setup, fixed by regrading trench; prevented with compacted base and correct pitch
- Incorrect discharge location: water draining in the wrong spot, fixed by extending outlet; prevented with good planning and code checks
- Mold and mildew: from leftover moisture, fixed with better airflow or drainage repair; prevented by system checks and ventilation.
Conclusion
If you’re thinking about a French drain basement system, I hope this gave you a clearer view of what’s involved.
You’ve seen how the options stack up, what the costs might be, and how the installation works step by step.
It’s a big project, but with the right info, you’re in a better spot to make the call that works for your home.
If you’re ready to tackle it yourself or leaning toward hiring help, the goal is the same, keeping your basement dry and protected.
Take your time, ask questions, and don’t rush the process. And if you’re looking for more ideas or tips, I’ve got more blogs that can help you move forward with confidence.
