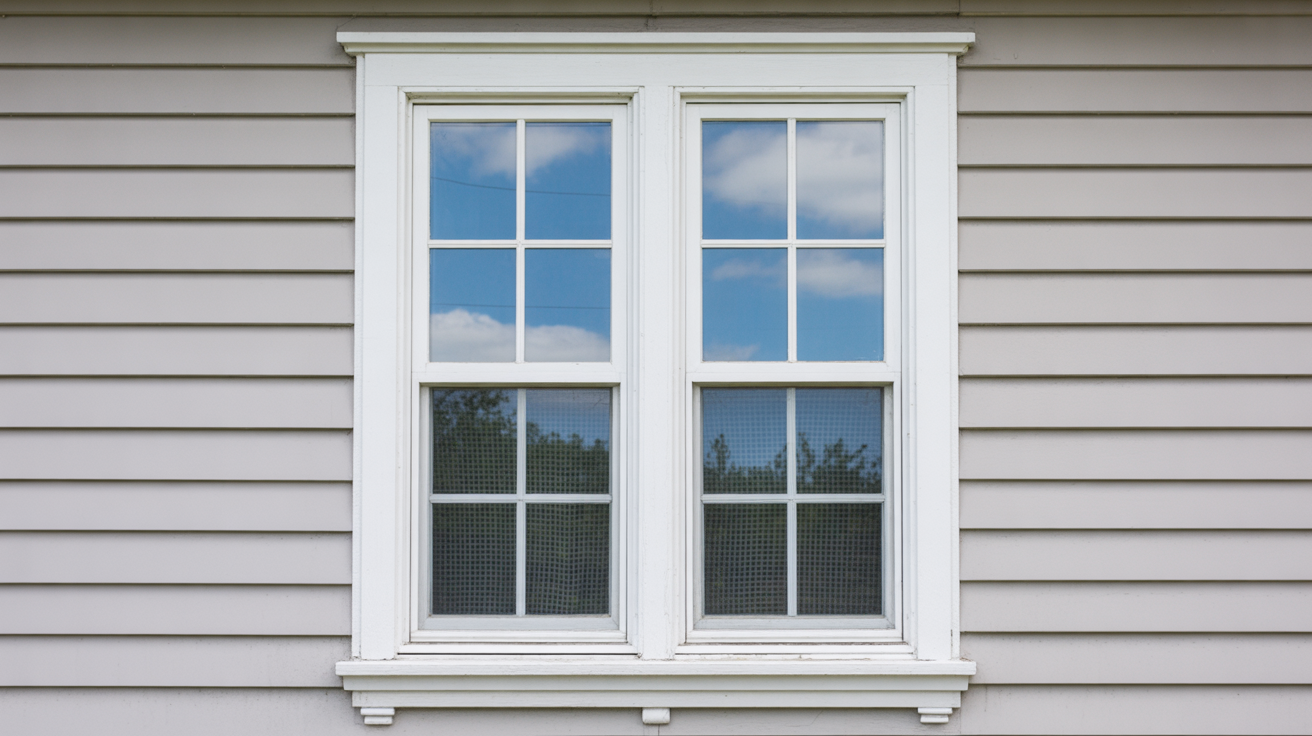

Main Parts of a Window Explained (Anatomy, Structure, and Hardware)

Not sure which window parts actually matter?

Most homeowners waste time on decorative pieces while ignoring parts that leak air and drive up energy bills.

You might focus on appearance, while weatherstripping fails and costs you hundreds yearly.

Knowing what to prioritize saves money and prevents damage. This blog explains the window anatomy and the main structural parts of a window.

Window Anatomy Overview

Window anatomy refers to all the parts that make up a complete window.

Like your body has bones, muscles, and skin working together, windows have frames, glass, and hardware working as one system.

Understanding these parts helps you fix problems, talk to contractors, and know what you’re buying when replacing windows.

Main Structural Parts of a Window

The structural framework provides the foundation and support for your entire window system. These components bear the weight and maintain the window’s shape over time.

1. Window Frame

The frame is the main border that holds everything together.

It attaches directly to your home’s wall structure and provides the mounting point for all other components.

Most frames come in wood, vinyl, aluminum, or fiberglass, with each material offering different durability and maintenance needs.

2. Head

The head sits at the very top of the window frame. This horizontal piece supports the upper portion and often contains drainage channels to prevent water buildup.

3. Sill

Located at the bottom, the sill slopes slightly outward to shed water away from the window. It takes the most weather abuse and commonly shows wear first.

Good sills have a drip edge underneath to prevent water from creeping back toward your wall.

4. Jambs

Jambs are the vertical sides of the frame, left and right. They provide the tracks or mounting points for operable window parts and help seal the window when closed.

5. Casing

Casing refers to the decorative molding that covers the gap between your window frame and wall.

It’s purely cosmetic but adds a finished look and hides any rough edges from installation.

6. Sash

The sash is the movable panel that holds the glass. In double-hung windows, you’ll have two sashes, upper and lower.

In casement windows, the entire sash swings outward like a door.

7. Rails

Rails are the horizontal pieces at the top and bottom of each sash. The meeting rail is where two sashes come together in a double-hung window, creating a seal when closed.

8. Stiles

Stiles run vertically along the sides of each sash. Along with rails, they form the frame that holds the glass panes in place.

9. Balance System

Found in double-hung and single-hung windows, the balance system makes sashes easier to lift and keeps them from slamming shut.

Older windows used weights and pulleys, while modern versions use spring-loaded or friction mechanisms hidden in the jambs.

10. Crank Mechanism

Casement and awning windows open using a crank handle.

The mechanism connects to an arm that pushes the window open and pulls it closed, providing better leverage than pushing with your hands.

11. Lock

Window locks secure the sash in the closed position. Common types include cam locks for double-hung windows and multipoint locks for casement styles.

A good lock pulls the sash tight against the frame to improve the seal.

12. Lifts and Handles

These are the grips you use to open and close windows manually. Lifts sit on the bottom rail of double-hung windows, while handles appear on casement and sliding models.

13. Glass Panes

The glass itself comes in various configurations. Single-pane windows have one layer, double-pane (or dual-pane) windows have two with an air gap between them, and triple-pane windows have three layers for maximum insulation.

14. Glazing

Glazing refers to the glass installation process and the materials used.

The term also describes special coatings applied to glass for energy efficiency, UV protection, or privacy.

15. Spacer

In multi-pane windows, spacers separate the glass layers and maintain the air gap. They run along all four edges and contain desiccant material that absorbs moisture, preventing fog between the panes.

16. Muntins and Grilles

Muntins are the thin strips that divide glass into smaller sections. True divided lights use muntins to separate individual pieces of glass. Simulated divided lights place decorative grilles on the glass surface to create the appearance of multiple panes without actually dividing them.

17. Glazing Bead

This thin strip of material holds the glass in place within the sash. Glazing beads snap into grooves and can be removed if you need to replace broken glass.

18. Weatherstripping

Weatherstripping creates a seal between moving parts. It comes in various materials, foam, vinyl, felt, or rubber, and gets compressed when the window closes to block air leaks. Over time, weatherstripping wears out and needs replacement.

19. Glazing Compound

Also called putty or caulk, glazing compound seals the gap between glass and sash in older windows. Modern windows typically use rubber gaskets instead, but traditional wood windows still rely on this material.

20. Drip Cap

The drip cap is a small piece of flashing installed above the window frame. It directs water away from the top of the window and prevents moisture from entering your wall cavity.

21. Weep Holes

These tiny openings at the bottom of the frame allow trapped moisture to escape.

They’re essential for preventing water damage but can become clogged with dirt or paint and need occasional cleaning.

22. Apron

The apron is the decorative trim piece directly below the interior sill. It covers the gap between the sill and the wall and adds architectural detail.

23. Stops

Stops are thin strips that hold the sash in place and create the channels for it to slide in.

In double-hung windows, you’ll find interior stops, exterior stops, and parting stops (between the two sashes).

24. Rosettes

Rosettes are decorative corner blocks where window casing meets at corners. They add a traditional design element and eliminate the need for complex miter cuts.

25. Window Screens

While not part of the window itself, screens attach to the frame and allow air circulation while keeping insects out. Most screens use aluminum or fiberglass mesh stretched across a lightweight frame.

26. Trim and Molding

Additional trim pieces beyond basic casing can include corner blocks, backbands, or decorative headers. These elements create architectural interest and match your home’s style.

Grilles, Muntins, and Mullions Explained

Grilles, muntins, and mullions divide window panes, some for decoration, others for structural support.

Grills

Grilles are decorative strips that make one large glass pane look divided. They don’t actually separate the glass; they just sit on top or between layers for appearance.

Common types include Snap-in grilles, Permanent grilles, sealed-between-glass

Muntins

Muntins hold separate glass pieces. Each section has its own pane. Old windows have real muntins; modern ones fake it with grilles.

Mullions

Mullions are thick posts between complete window units. They’re structural supports attached to wall framing.

Window Hardware Components

Window hardware includes metal or mechanical parts that help windows open, close, and lock. These moving pieces often need repair or replacement.

Essential Window Hardware

• Locks: Secure windows closed. Cam locks for double-hung windows and handles for casement windows.
• Handles and Cranks: Handles provide grip. Cranks turn gears that push casement windows open.
• Hinges: Let casement, awning, and hopper windows swing open while supporting their weight.
• Lifts and Pulls: Lifts attach to the bottom rails for raising double-hung windows. Pulls slide horizontal windows.
• Operators: Mechanical devices with cranks, arms, and gears for smooth window operation.
• Balances: Counterweight double-hung sashes so they stay open at any height.
• Keepers and Strikes: Frame catches that lock engage to secure windows shut.
• Tilt Latches: Buttons that let you tilt double-hung windows inward for cleaning.

Finishing Hardware

• Escutcheons: Decorative plates behind locks or handles.
• Window Stays: Adjustable arms holding casement windows open at specific angles.
• Sash Fasteners: Traditional cam locks that pull two sashes together.

Conclusion

Understanding window anatomy and the main parts of a window makes repairs simpler.

When you know each part’s name and function, you spot problems quickly and communicate clearly with contractors.

Start by examining your own windows and identifying each component.

This knowledge helps you catch issues early and make better decisions about repairs or replacements.
